Hioki PQ3198/100 KIT аналізатор якості електроенергії

Overview

The Hioki PQ3198/100 KIT is a portable 3-phase power quality analyzer with 100A AC current sensors, designed for monitoring and analyzing power supply anomalies in electrical systems. It complies with IEC61000-4-30 Class A standards and offers high accuracy with continuous gapless recording for reliable power quality assessment.

Key Features

• IEC61000-4-30 Class A compliant measurement
• High accuracy and continuous gapless recording (V: ±0.1%, A: ±0.1% reading, W: ±0.2% reading)
• Broadband voltage range for harmonic analysis up to 80 kHz
• Transient voltage measurement up to 6000V peak at 700 kHz
• Dual power measurement and efficiency calculation for separate circuits
• Inverter measurement with 40-70 Hz fundamental and up to 20 kHz carrier frequency
• Included PQ ONE software for detailed analysis and reporting
• Optional GPS BOX available for multi-device synchronization

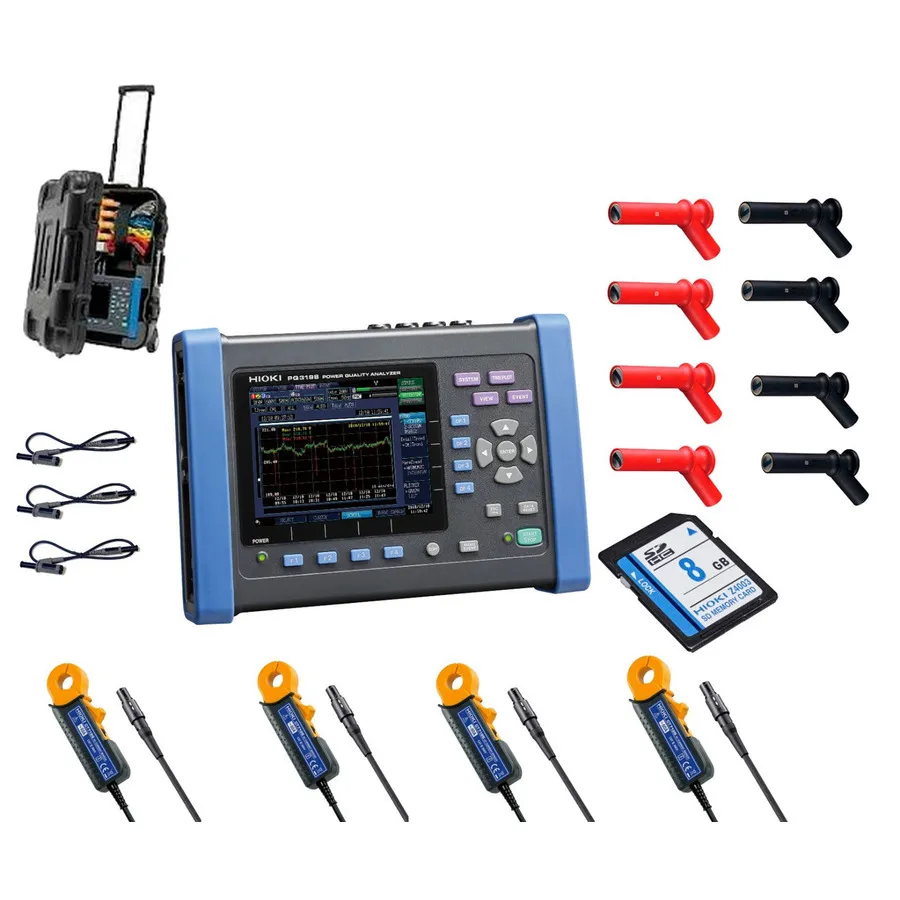

Included Accessories

• 4 x CT7131 100A AC current sensors
• 3 x L1021-02 patch cords
• 4 x 9804-01 Magnetic voltage cord tip adapters (Red)
• 4 x 9804-02 Magnetic voltage cord tip adapters (Black)
• Z4003 8GB SD memory card
• PW3198 HC hard carrying case
