Siglent SYN64 розподільник синхронізації

Overview

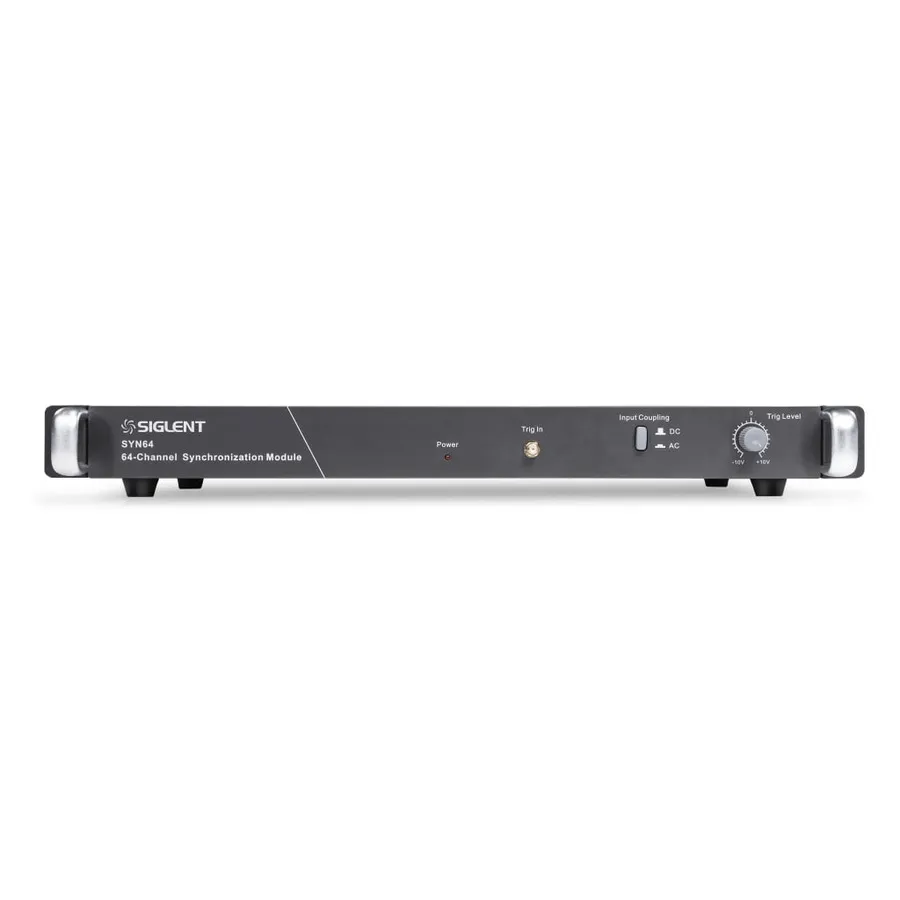

The Siglent SYN64 is a high-speed synchronization distributor designed for multi-channel acquisition systems using multiple oscilloscopes. It provides 1:64 fanout from a single input signal to 64 output channels, enabling synchronized triggering and precise delay calibration across multiple instruments while maintaining low jitter and skew characteristics.

Key Features

• 1:64 high-speed fanout with 64 independent output channels
• DC-coupled and AC-coupled input modes for flexible signal handling
• Input and trigger level range: -10V to 10V
• Low jitter and low skew performance
• 1U height for standard 19-inch rack mounting
• Calibrated channel delay for system synchronization

Applications

• Multi-channel oscilloscope acquisition system synchronization
• Precision timing and trigger distribution across test equipment
• Channel alignment and skew calibration in measurement systems
• High-speed serial signal analysis with multiple instruments
