OptiFiber Pro Singlemode OTDR with SmartLoop dual-fiber testing, gesture-based touchscreen interface, automatic event identification, and Wi-Fi for datacenter and OSP fiber certification.
Деталі продукту
| Модель | OFP2-100-S |
| Виробник | Fluke Networks |
| Категорія | Optical Time Domain Reflectometers |
| Наявність | На замовлення |
Опис
Огляд
OptiFiber Pro OFP2-100-S є одномодним OTDR, призначеним для тестування волокна на дальні відстані в зовнішніх мережах (OSP), FTTx та корпоративних мережах. Як частина системи сертифікації кабелювання Versiv, ця модель забезпечує сертифікацію волокна Tier 2 з передовим аналізом слідів, автоматизованим тестуванням SmartLoop та бездротовою підтримкою через інноваційний інтерфейс сенсорного екрана Taptive.
Основні характеристики
- Тестування одномодного волокна на довжинах хвиль 1310, 1550 та 1625 нм для мереж дальної дії
- Технологія SmartLoop дозволяє автоматизоване тестування двох волокон в одному проході з двосторонним усередненням
- EventMap автоматично визначає та характеризує сполучення, з'єднувачи, розгалуження та вигини в ланці волокна
- Інтерфейс Taptive на базі жестів із можливістю щипання та масштабування для інтуїтивного глибокого аналізу слідів
- Надзвичайно коротка зона мертвої затухання (3,6 м типово для одномодного) для точної локалізації несправностей
- Режим DataCenter OTDR для тестування коротких патч-кордів у середовищах з високою щільністю
- Режим Expert Manual дозволяє користувачам налаштовувати автоматизовані параметри та дослідити деталі конкретних слідів
- Вбудована Wi-Fi для управління завданнями LinkWare Live та спільного використання результатів у режимі реального часу
- Система управління ProjX для ролей операторів, призначення завдань та відстеження проектів
- Звіти про сертифікацію Pass/Fail з професійною документацією
Застосування
- Монтаж та введення в експлуатацію мереж волокна на дальні відстані
- Сертифікація та обслуговування ланок волокна зовнішніх мереж (OSP)
- Розгортання та усунення неполадок інфраструктури FTTx
- Тестування магістральних мереж волокна підприємства
- Аналіз підводних та дальніх ліній волокна
- Польове усунення неполадок та ізоляція несправностей

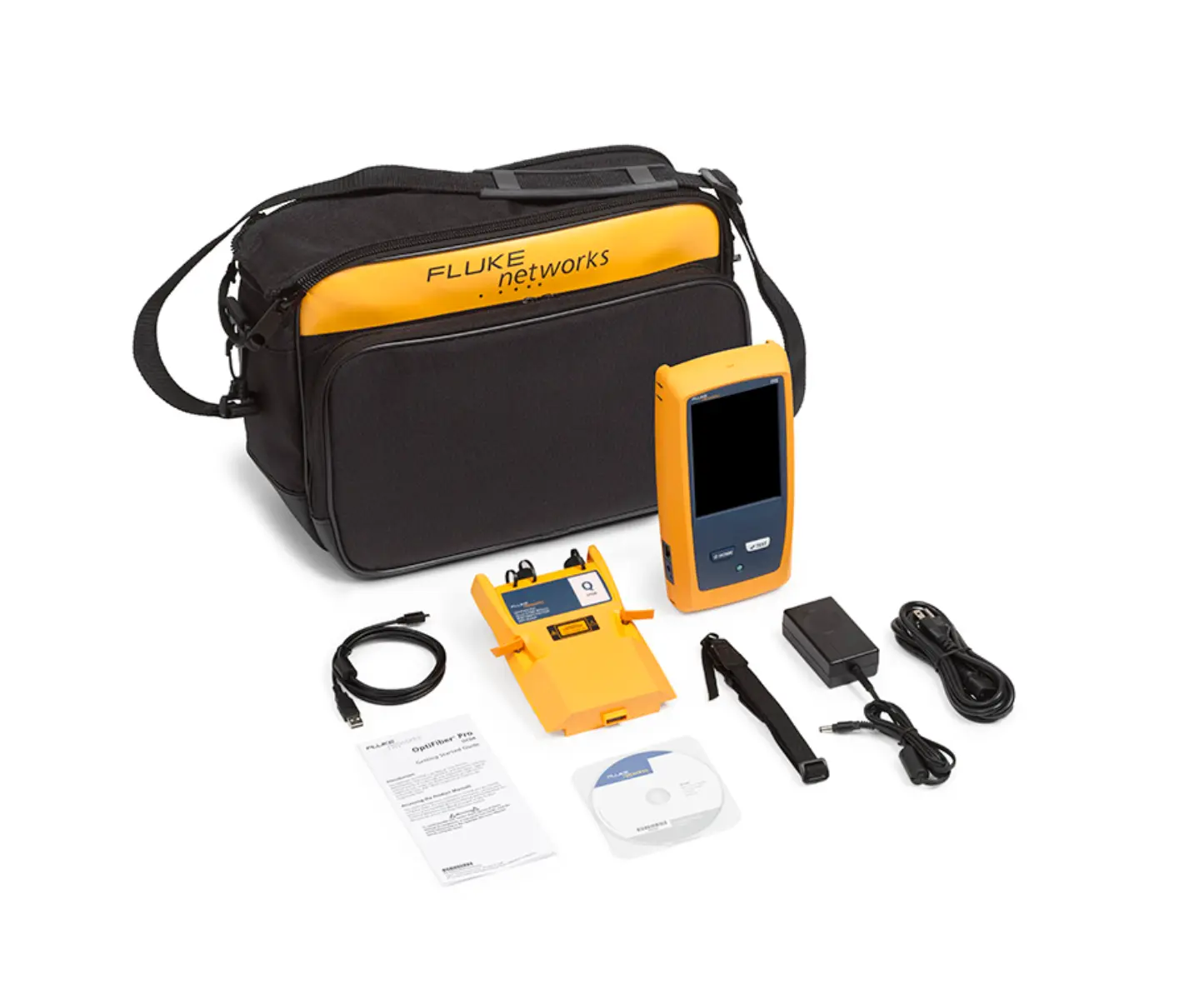

Комплектація
- Основний блок Versiv 2
- Модуль OptiFiber Pro Singlemode OTDR
- Ремінь на плече та захисний кейс для перенесення
- Кабель інтерфейсу USB та зарядний пристрій AC
- Вбудована можливість Wi-Fi
- Свідоцтво про калібрування та посібники початку роботи
Характеристики
| Smartphone User Interface | Most OTDRs are designed for a myriad of applications, causing the user interface to be difficult to navigate and interpret. OptiFiber Pro combines the latest “gesture-based” interface technology with a capacitive touchscreen to deliver the most innovative and user-friendly OTDR. Advantages: Single-touch tap and swipe control for selecting and scrolling menu items. Multi-touch pinch to zoom for easy magnification control on a graphical fiber trace. Task-focused design to reduce back and forth navigation through screens. Capacitive touchscreen eliminates the need to recalibrate unlike legacy touchscreens. Context sensitive on-screen help that gives users additional details or problem resolution suggestions |
| At Home in the Datacenter | Driven by server virtualization and multi-gigabit links between servers, networks and storage, the datacenter architecture employs more patch cords and dense topology connectors, rendering carrier-class OTDRs with long dead zones ineffective. OptiFiber Pro not only makes fiber deployment in datacenters possible, but provides the highest level of accuracy for quick problem resolution. With a simple one-touch selection, users enter DataCenter OTDR mode - without setup time for fine-tuning as needed in legacy OTDRs. DataCenter OTDR mode automatically detects OTDR parameters - end-detection algorithms, pulse widths, etc - without getting confused by the short links or number of connectors. Advantages: Ultra-short event and attenuation dead-zones precisely locates events and faults on fiber links in the Enterprise. DataCenter OTDR™ mode automatically sets the configuration to quickly test datacenter fiber. The EventMap feature depicts fiber events in a way that requires no trace analysis expertise. |
| Unique Certification with Flexibility and Efficiency | An important aspect in maximizing an OTDR’s value is to properly plan its day-to-day usage. With built-in project management, OptiFiber Pro allows a project manager to define each user’s role, settings and the associated tasks to be performed – transforming the OTDR into an all-in-one fiber testing tool complete with planning, inspection, certification and reporting. OptiFiber Pro enhances job efficiency by allowing the workflow planner to create and manage operator and job profiles per project - defined jobs or sets of cable IDs can be assigned to specific operators. The progress and status of each project can also be easily monitored. Advantages: Full OTDR capability that certifies fiber performance based on job assignment for each operator. Powerful project management facilitates OTDR sharing with clear job assignment for each operator. Easy monitoring of job progress with pass/fail results. On-screen report generation and upload to LinkWare™ application. |
| Other Key Features | Extremely short event and attenuation dead zone for the Enterprise The OptiFiber Pro leverages the most sophisticated optical technology to provide the shortest event dead zone (0.5 m typical for MM) and attenuation dead zone (2.2 m typical for MM and 3.6 m typical for SM) of any OTDR. This technological advancement allows OptiFiber Pro to detect and measure closely spaced faults where no other OTDR can in today’s connector-rich datacenter and storage area environments. |
| OFP2-100-S | OptiFiber Pro Singlemode OTDR V2 kit with Wi-Fi. This kit includes: (1) Versiv 2 Mainframe, (1) OptiFiber Pro Singlemode OTDR module, Shoulder Strap, USB Interface Cable, Carry Case, AC Charger, Integrated Wi-Fi, Statement of Calibration and Getting Started Guides. |
