Viavi ORL-85 волоконно-оптичний вимірювач повернення втрат
Viavi ORL-85 Fiber Optical Return Loss Meter
Viavi ORL-85 is a fiber optic return loss meter with 1260-1650 nm range, 70 dB measurement, fiber inspection, and field-portable design with color touchscreen.
Деталі продукту
| Модель | ORL-85 (2311/23) |
| Виробник | Viavi |
| Категорія | Тестування мереж та волоконної оптики |
| Наявність | На замовлення |
Опис
Overview

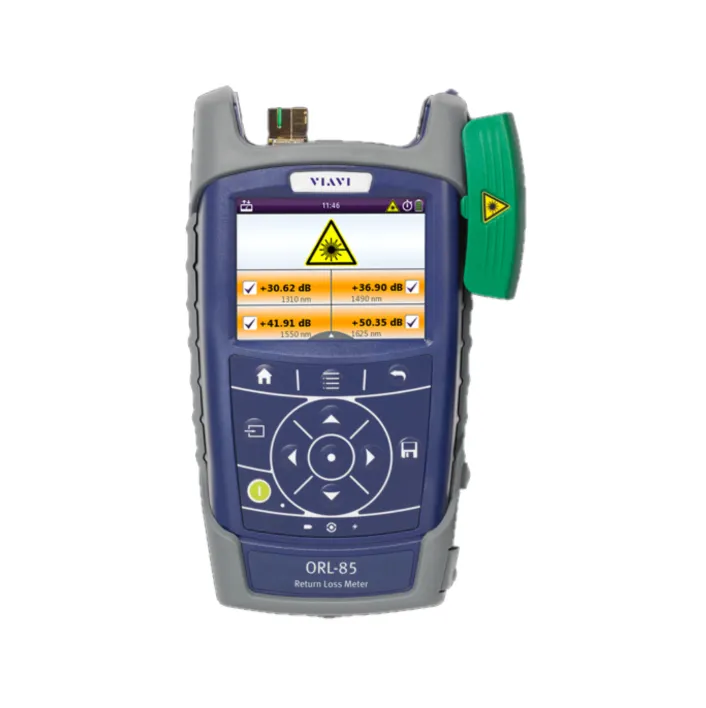

The Viavi ORL-85 is a SmartClass fiber inspection-ready optical return loss meter designed for field deployment and installation verification. With a measurement wavelength range of 1260 to 1650 nm and return loss capability up to 70 dB, the instrument combines return loss measurement, optical power measurement, light source functions, and fiber end-face inspection in a portable platform. High-speed laser systems, analog transmission systems (CATV), and Raman amplifier systems require high return loss for optimal performance, making accurate return loss measurement critical for system reliability.
Key Features
- Measurement wavelength range from 1260 to 1650 nm with 1 nm incremental setting at power meter
- Return loss measurement up to 70 dB for high-performance optical systems
- Angled single-mode test port (APC) for accurate return loss measurements up to 50 dB without external termination
- Ultra-sensitive power meter combined with stabilized light sources for full dynamic range
- 3.5 inch color touch screen with integrated stylus for intuitive operation
- Interchangeable optical adapters (Senko) for FC, SC, ST, and LC connectors
- Individual threshold settings for power and loss pass/fail analysis
- Fiber inspection and test results storage with time stamp
- Automated pass/fail fiber inspection analysis with optional P5000i microscope
- Auto-lambda and multi-lambda test functions for flexible measurement modes
- Data transfer and remote control via USB or Ethernet interface
- Compact, rugged, weather-proof design for field use
Applications
- Measurement of optical return loss in high-speed systems
- Measurement of optical power (absolute and relative)
- Measurement of optical insertion loss
- Inspection of optical connectors (end-face inspection by visual contact - IBYC)
- Installation verification and commissioning
- Field troubleshooting and maintenance
Характеристики
| Operating Modes | Return Loss, Power Meter, Light SourceReturn Loss, Power Meter, Light Source |
| Nominal wavelengths (1) | 1310, 1550 nm1310, 1550, 1625 nm |
| Spectral width | < 5 nm< 5 nm |
| Output power (settable in 0.01 dB steps) | –3 to –6 dBm–6 to –9 dBm |
| Stability7 15 min/8 hr | 0.02/0.2 dB0.02/0.2 dB |
| Source modes | CW, tone, Auto-λ (8) , Multi-λ (8)CW, tone, Auto-λ (8) , Multi-λ (8) |
| Tone generator | 270 Hz, 1 kHz, 2 kHz270 Hz, 1 kHz, 2 kHz |
| Optical interfaces | APC connector with interchangeable SC, FC, ST adaptersAPC connector with interchangeable SC, FC, ST adapters |
| ORL-85 | 2311/23ORL-85 Return Loss Meter 1310, 1550, 1625 nm, APC |
