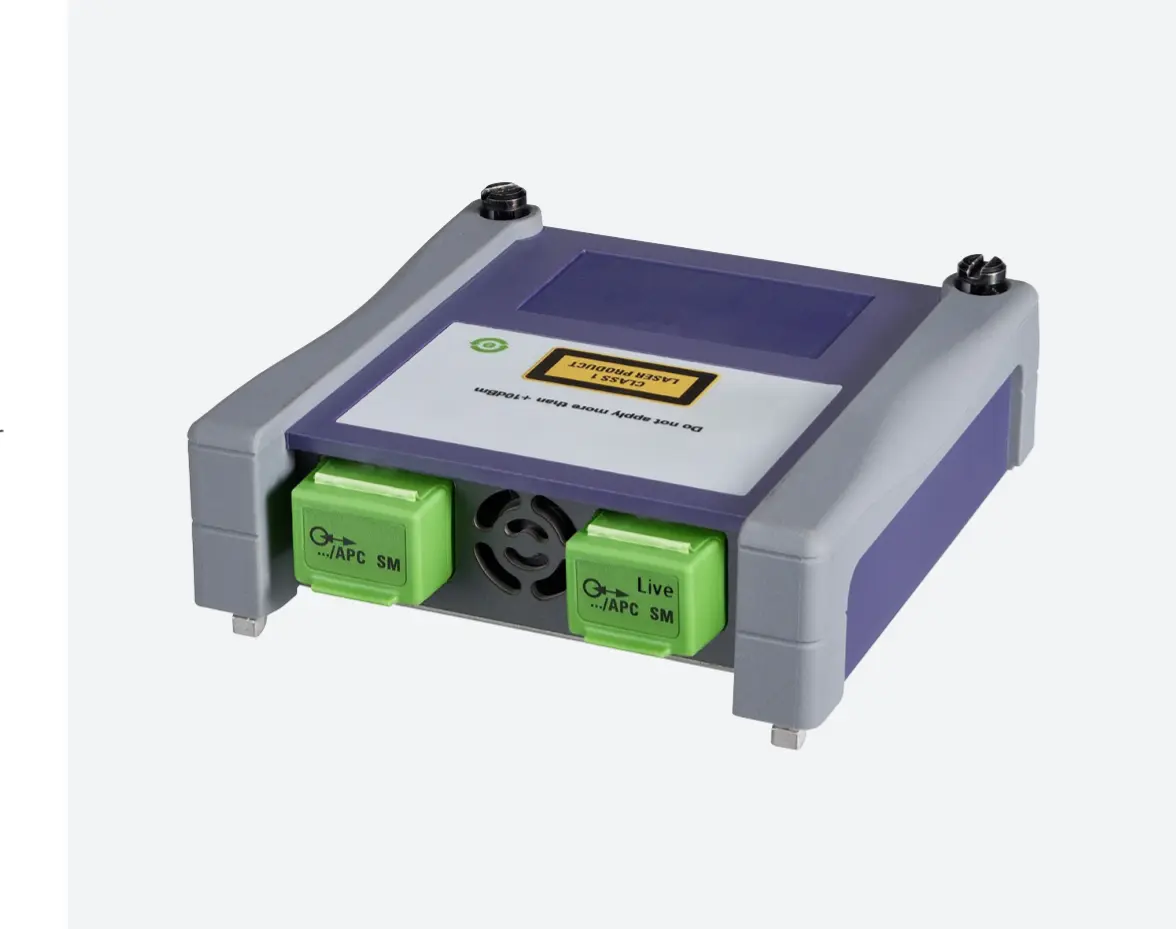

Viavi E4126MA2-APC модуль OTDR

Overview

The Viavi E4126MA2-APC is an enhanced metro-access OTDR module within the 4100-Series platform, operating at 1310 nm and 1550 nm wavelengths. The MA2 version features increased acquisition capabilities with 256,000 acquisition points and improved PON testing optimization through 1x256 splitter ratios. The APC (angled connector) variant is designed for angled physical contact connectors, improving return loss performance in demanding optical network environments.

Key Features

• Up to 45 dB dynamic range and 256,000 acquisition points for detailed fiber analysis
• PON-optimized to test through 1x256 splitter ratios (enhanced from 1x32)
• Combined single-mode and multimode capability into one quad module
• Dual wavelength operation at 1310 nm and 1550 nm
• Integrated CW light source and power meter
• APC (angled) connectors for improved return loss performance
• Instant live traffic detection when connected to active fiber
• ITU fiber type identification (G.65x A, B, C, and D) with water peak detection at 1383 nm
• Ready for Enterprise-SLM, FTTA-SLM, and FTTH-SLM intelligent optical application software

Applications

• Passive optical network (PON/FTTH/FTTA) deployment and maintenance with high-ratio splitters
• Metro-access network testing with detailed acquisition analysis
• Enterprise optical network troubleshooting with instant traffic detection
• Fiber type and water peak identification for system optimization
• Point-to-point fiber optics installations requiring combined SM/MM capability
• Field testing of live optical networks without disconnection
