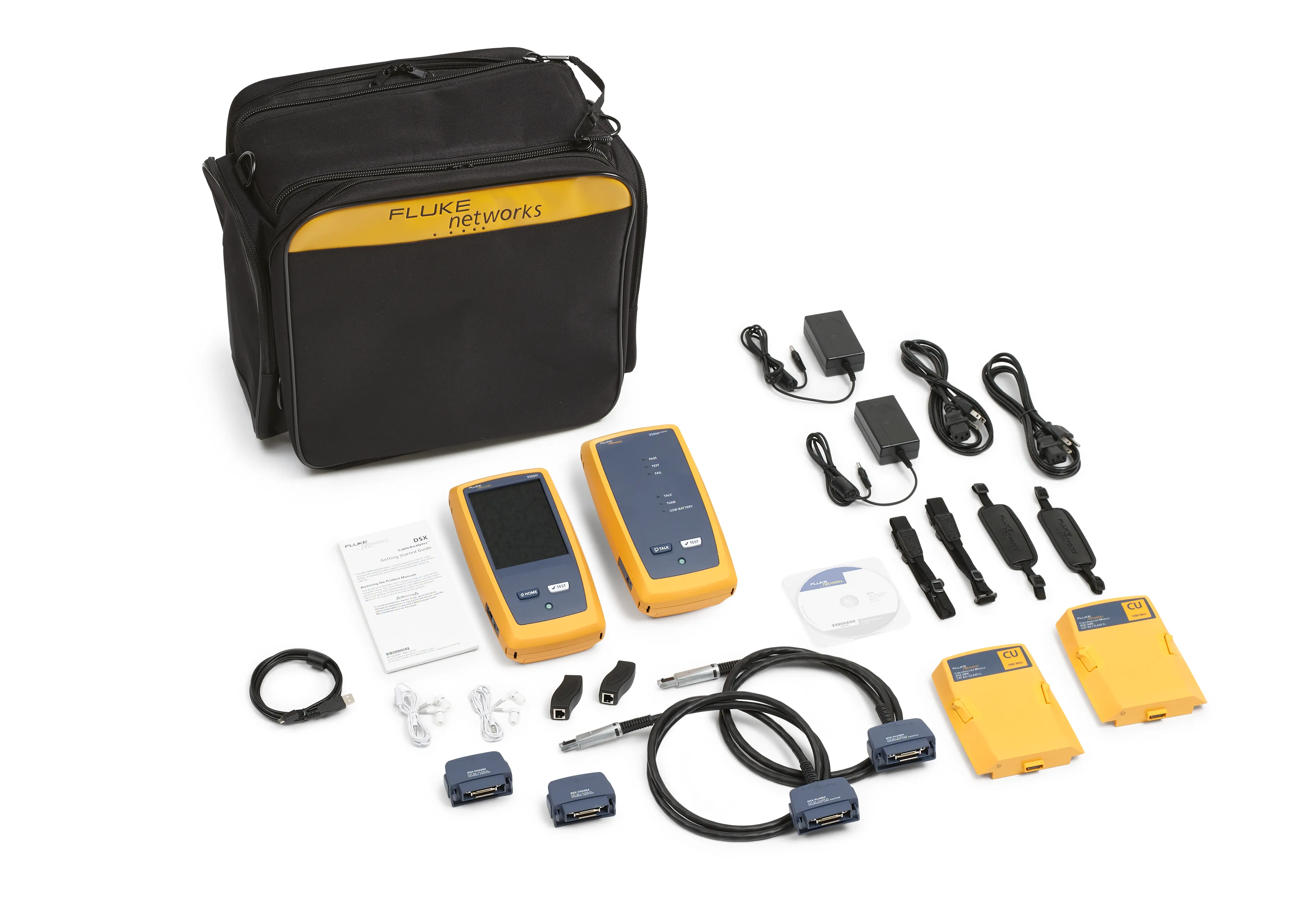

Fluke Networks DSX-5000 120 аналізатор кабелів

Overview

The Fluke Networks DSX-5000 CableAnalyzer is a comprehensive copper cable certification solution as part of the Versiv cabling certification product family. The integrated ProjX management system ensures jobs are completed correctly on the first attempt, eliminating rework. With the Taptive user interface, setup and operation are simplified so technicians of any skill level can successfully test and certify cabling systems. The DSX reduces troubleshooting time with dedicated diagnostics that locate problems quickly.

Key Features

• Certifies copper cabling for Cat 5e, 6, 6A, and Class FA standards
• Level V accuracy exceeding IEC 61935-1 specifications to 1200 MHz
• 10-second Cat 6A test time for fast certification cycles
• Dedicated Diagnostics feature locates cabling faults with graphical source display
• Dedicated Diagnostics simplifies alien crosstalk link-to-link certification
• ProjX management system prevents redundant steps and ensures task completion
• Taptive interface for advanced data analysis accessible to all skill levels
• LinkWare management software provides professional test reporting and analysis
• Manages up to 12,000 test results with complete graphics
• Resistance Unbalance standards for Power over Ethernet (PoE) compliance

Standards Compliance

• TIA: Category 3, 4, 5, 5e, 6, 6A per TIA 568-C.2
• ISO/IEC: Class C, D, E, Ea, F, FA per ISO/IEC 11801:2002 and amendments
• Level V accuracy per proposed ISO IEC61935-1 to 1000 MHz
• IEEE 802.3af and 802.3at Power over Ethernet
• IEC 61935-1 and IEEE 802.3 resistance unbalance requirements

Applications

• Professional network installation and certification
• System acceptance testing and field troubleshooting
• High-speed Ethernet cabling verification
• Power over Ethernet system testing
