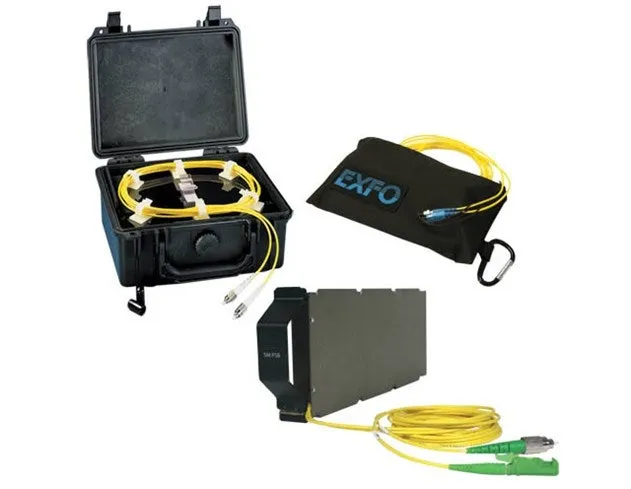

EXFO SPSB-B-150-98-88 Launch Test Cable
EXFO SPSB-B-150-98-88 кабель запуску
Запитати ціну
EXFO SPSB-B-150-98-88 is a 150 m singlemode launch test cable for OTDR fiber testing, enabling loss measurement on first and last fiber connections.
Деталі продукту
| Модель | SPSB-B-150-98-88 |
| Виробник | EXFO |
| Категорія | Network & Fiber Optic Test |
| Наявність | На замовлення |
Опис
Огляд
EXFO SPSB-B-150-98-88 — портативна коробка придушення імпульсів довжиною 150 метрів для тестування OTDR. Дозволяє точне вимірювання втрат на волоконних з'єднаннях, подолаючи мертву зону OTDR, що критично важливо для точної характеризації та перевірки волоконних ліній.
Основні характеристики
- 150 м однорережимного волокна (9/125 µm) розширює діапазон вимірювання OTDR за мертву зону
- Роз'єми SC/APC для сумісності з більшістю портів OTDR та панелей патч-кордів
- Вставна втрата роз'єму < 0,5 дБ для мінімального затухання сигналу
- Рефлектанс роз'єму APC < –60 дБ для точних вимірів зворотного розсіювання
- Портативна м'яка сумка для виїзного розгортання
- Зменшує зносу роз'єму OTDR, виключаючи прямі з'єднання
Застосування
- Характеризація волоконно-оптичних ліній та вимірювання втрат
- Тестування приймання волоконних мереж при встановленні
- Усунення несправностей та обслуговування кабелю
- Вимірювання втрат першого та останнього з'єднання у волоконних розпанах
Характеристики
| Choice of Configurations | Typically, the length of an OTDR’s dead zone is equivalent to that of the optical pulse plus a few meters. The chosen launch test cable should therefore be longer than the pulse dead zone used for the tests. For instance, a 1 µs pulse is approximately 100 m long; selecting a 150 m SPSB or a 300 m LTC/PSB would therefore be appropriate. EXFO offers three types of launch cables: ▪ The FTB-LTC module combines with an FTB-7000 series OTDR module in the FTB-500 or FTB-200 platform ▪ The stand-alone PSB comes in a rugged, compact carrying case ▪ The portable SPSB comes in a soft, easy-to-carry-everywhere pouch |
| How it Works | Link characterization is often performed using an OTDR. But even though an OTDR has the shortest dead zones, because of the way loss is measured in a link, it does not allow the characterization of the first and last connectors without using a launch test cable, also called a pulse suppressor box. The loss value associated with an event is the difference between the backscattering levels measured before and after the event. To account for the OTDR’s dead zone, obtaining a backscattering level before the first connector requires inserting a certain length of fiber between the OTDR port and the first connector of the fiber under test. At the other end of the link, the same length of fiber is added after the last connector of the “receive” cable. In order to obtain an accurate, complete picture of the system’s loss—which is a critical aspect of fiber commissioning—a launch test cable should always be used at both ends of the fiber link. |
| Feature | Parameter |
| Feature | Description |
| SPSB-B-150 | Soft pulse suppressor bag, singlemode fiber 9/125, 150 m |
| 88 | SC/APC narrow key |
| 98 | LC/PC |
