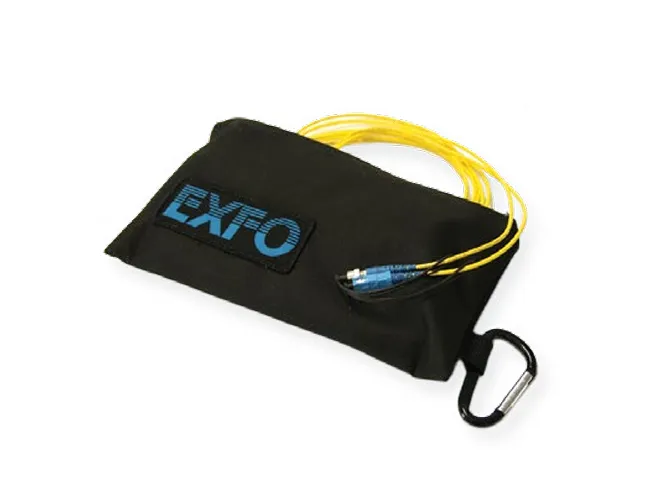

EXFO SPSB-B-1000-88-104 Singlemode Launch Test Cable
EXFO SPSB-B-1000-88-104 Кабель запуску для одномодового волокна
Запитати ціну
EXFO SPSB-B-1000-88-104 is a 1000m singlemode launch test cable with SC/APC and LC/APC connectors for OTDR dead zone elimination.
Деталі продукту
| Модель | SPSB-B-1000-88-104 |
| Виробник | EXFO |
| Категорія | Network & Fiber Optic Test |
| Наявність | На замовлення |
Опис
Огляд
EXFO SPSB-B-1000-88-104 — портативний кабель запуску (пульсний пригнічувальний ящик) для використання з оптичними часовими доменними рефлектометрами (OTDR) для точної характеризації волокна. Цей 1000-метровий кабель одномодового волокна охоплює мертву зону OTDR, дозволяючи точно виміряти втрати при з'єднаннях волокна, які в іншому випадку були б невимірними.
Основні характеристики
- 1000 м одномодове волокно (9/125 µm)
- Роз'єми SC/APC (88) та LC/APC (104)
- Втрати вставки роз'єму менше 0,5 дB
- Коефіцієнт відбиття роз'єму менше −60 дB (APC)
- Портативна конструкція з м'якою сумкою для переноски
- Дозволяє вимірювати втрати при першому та останньому волокнистому з'єднанні
- Зменшує кількість підключень роз'єму OTDR для продовження терміну служби устаткування
- Широкий вибір варіантів роз'ємів, доступних у цій серії продуктів
Застосування
- Характеризація волокна OTDR та запуск мереж
- Встановлення та усунення несправностей волоконних ліній
- Вимірювання втрат при критичних волокнистих з'єднаннях
- Контроль якості тестування волоконних мереж та ліній
Характеристики
| Choice of Configurations | Typically, the length of an OTDR’s dead zone is equivalent to that of the optical pulse plus a few meters. The chosen launch test cable should therefore be longer than the pulse dead zone used for the tests. For instance, a 1 µs pulse is approximately 100 m long; selecting a 150 m SPSB or a 300 m LTC/PSB would therefore be appropriate. EXFO offers three types of launch cables: ▪ The FTB-LTC module combines with an FTB-7000 series OTDR module in the FTB-500 or FTB-200 platform ▪ The stand-alone PSB comes in a rugged, compact carrying case ▪ The portable SPSB comes in a soft, easy-to-carry-everywhere pouch |
| How it Works | Link characterization is often performed using an OTDR. But even though an OTDR has the shortest dead zones, because of the way loss is measured in a link, it does not allow the characterization of the first and last connectors without using a launch test cable, also called a pulse suppressor box. The loss value associated with an event is the difference between the backscattering levels measured before and after the event. To account for the OTDR’s dead zone, obtaining a backscattering level before the first connector requires inserting a certain length of fiber between the OTDR port and the first connector of the fiber under test. At the other end of the link, the same length of fiber is added after the last connector of the “receive” cable. In order to obtain an accurate, complete picture of the system’s loss—which is a critical aspect of fiber commissioning—a launch test cable should always be used at both ends of the fiber link. |
| Feature | Parameter |
| Feature | Description |
| SPSB-B-1000 | Soft pulse suppressor bag, singlemode fiber 9/125, 1000 m |
| 88 | SC/APC narrow key |
| 104 | LC/APC |
