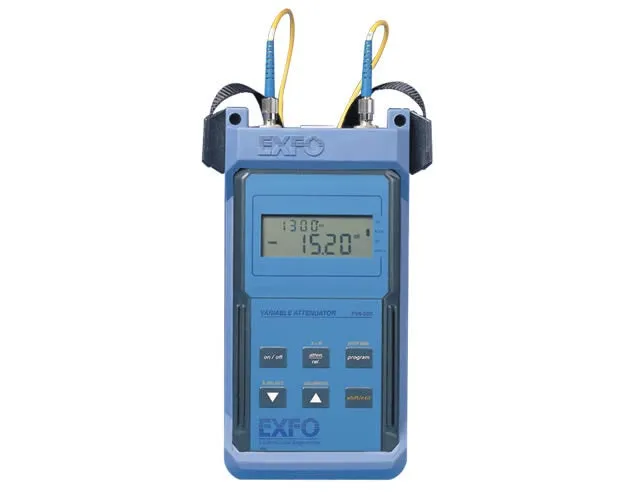

EXFO FVA-60B Variable Attenuator
EXFO FVA-60B змінний атенюатор
Запитати ціну
EXFO FVA-60B is a portable variable fiber attenuator with up to 65 dB attenuation, 0.05 dB resolution, and three-way powering for laboratory and field use.
Деталі продукту
| Модель | FVA-60B |
| Виробник | EXFO |
| Категорія | Network & Fiber Optic Test |
| Наявність | На замовлення |
Опис
Огляд
EXFO FVA-60B — портативний змінний оптичний атенюатор, призначений для використання в лабораторії та у полі. Забезпечує точне керування оптичним ослабленням з виключними характеристиками, що робить його ідеальним для тестування та вимірювань у мережевій інфраструктурі та телекомунікаціях.
Основні характеристики
- Максимальне ослаблення до 65 дБ з роздільною здатністю 0,05 дБ
- Режим Program для автоматизованих послідовностей ослаблення з до 60 кроків
- 14 доступних довжин хвиль (820–1330 нм) для точного збігу довжини хвилі
- Три способи живлення: адаптер змінного струму, акумулятор NiCad/NiMH та резервна батарея 9В
- Можливість дистанційного керування через інтерфейс RS-232
- Виключна лінійність (±0,15 дБ) та повторюваність (±0,03 дБ типово)
Застосування
- Тестування частоти помилок (BER)
- Тестування та прийняття системи
- Калібрування та перевірка вимірювачів потужності
- Аналіз оптичного запасу
- Імітація втрат системи
- Застосування на місці, виробництво та НДДКР
Характеристики
| Program Mode: | Cycles through a repeatable sequence of up to 60 attenuation steps, pausing for one second or up to 60 hours at a time. The Program mode is particularly suited to accelerated bit-error-rate (BER) testing. |
| Fourteen Available Wavelengths | Matches your source wavelength to the nearest 10 nm for unbeatable accuracy. |
| Variable Scanning Speed: | Scans the complete attenuation range at four different speeds according to the selected step size (0.05, 0.20 or 1.00 dB/step and variable step size). |
| Remote Control Capability: | Operate the FVA-60B remotely from your PC using the standard RS-232 interface and control codes. Program software solutions are adapted to your testing needs. |
| Three-Way Powering: | The FVA-60B features three complementary power sources for extended operation: a rechargeable NiCad battery, a 9 V alkaline backup battery and an AC adapter/charger for continuous operation. |
| Exceptional Specifications: | High-quality optical components make the FVA-60B Variable Attenuator the standard for performance and flexibility. EXFO’s computer-assisted calibration techniques deliver remarkable specifications: ± 0.15 dB linearity 0.05 dB resolution ± 0.10 dB repeatability |
| The FVA-60B enables consistent operation in various manual or automated testing situations. | BER testing System testing and acceptance Power meter calibration and verification Optical margin analysis System loss simulation Field, manufacturing and R&D applications |
| Size | 220mm x 110mm x 50mm (8.75 in x 4.5 in x 2 in) 220mm x 110mm x 50mm (8.75 in x 4.5 in x 2 in) |
| Relative Humidity | 0 % to 95 % non-condensing0 % to 95 % non-condensing |
| Power | AC charger (continuous operation), NiMH (5 to 25 hours depending on usage). 9V alkaline batteries (3 to 10 extra hours depending on usage) AC charger (continuous operation), NiMH (5 to 25 hours depending on usage). 9V alkaline batteries (3 to 10 extra hours depending on usage) |
| Speed | 0 to 70 dB in 10 seconds at maximum scan rate0 to 70 dB in 10 seconds at maximum scan rate |
| Model / Part Number | Description |
| Example | FVA-60B-D-EI-EUI-89 |
