EXFO FTB-LTC-B-1000-XX-YY Launch Test Cable
EXFO FTB-LTC-B-1000-XX-YY кабель запуску тесту
Запитати ціну

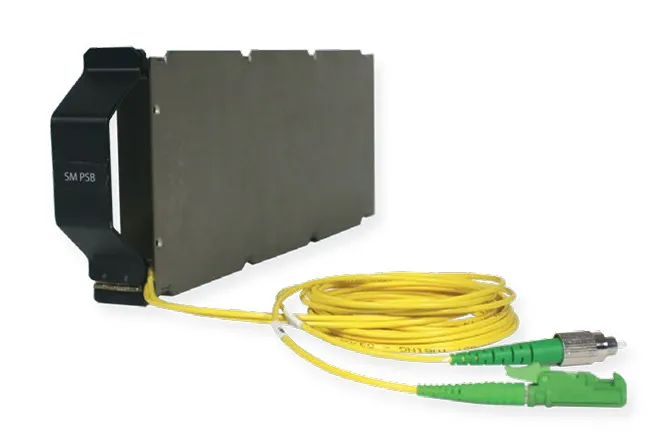

EXFO FTB-LTC-B-1000-XX-YY launch test cable with 1000 m singlemode fiber covers OTDR dead zone for accurate loss measurement of first and last fiber connections.
Деталі продукту
| Модель | FTB-LTC-B-1000-XX-YY |
| Виробник | EXFO |
| Категорія | Network & Fiber Optic Test |
| Наявність | На замовлення |
Опис
Огляд
EXFO FTB-LTC-B-1000-XX-YY — кабель запуску тесту довжиною 1000 метрів, розроблений для роботи разом з OTDR. Він перекриває мертву зону OTDR, забезпечуючи точне вимірювання втрат на перших та останніх з'єднаннях волоконної лінії, що тестується. Ця модель однорежимного режиму з волокном 9/125 µm є важливою для комплексного введення волокна в експлуатацію та усунення несправностей.
Основні характеристики
- Довжина 1000 m волокно однорежимного режиму (9/125 µm, G.652D)
- Втрата вставки з'єднувача менше 0.5 dB
- Відбиття: UPC менше –50 dB, APC менше –60 dB
- Типове затухання: 0.37 dB/km при 1310 nm, 0.25 dB/km при 1550 nm
- Доступно з кількома типами з'єднувачів: FC/APC, SC/APC, FC/UPC, ST/UPC, SC/UPC, E2000/UPC, E2000/APC, LC/UPC, LC/APC
- Зовнішній патч-корд: 2 × 1.5 m
Застосування
- Встановлення та усунення несправностей OTDR мереж доступу волокна
- Вимірювання втрат подій першого та останнього з'єднувача в волоконних лініях
- Введення в експлуатацію нової волоконної інфраструктури
- Обслуговування та перевірка продуктивності мережі
Характеристики
| Choice of Configurations | Typically, the length of an OTDR’s dead zone is equivalent to that of the optical pulse plus a few meters. The chosen launch test cable should therefore be longer than the pulse dead zone used for the tests. For instance, a 1 µs pulse is approximately 100 m long; selecting a 150 m SPSB or a 300 m LTC/PSB would therefore be appropriate. EXFO offers three types of launch cables: ▪ The FTB-LTC module combines with an FTB-7000 series OTDR module in the FTB-500 or FTB-200 platform ▪ The stand-alone PSB comes in a rugged, compact carrying case ▪ The portable SPSB comes in a soft, easy-to-carry-everywhere pouch |
| How it Works | Link characterization is often performed using an OTDR. But even though an OTDR has the shortest dead zones, because of the way loss is measured in a link, it does not allow the characterization of the first and last connectors without using a launch test cable, also called a pulse suppressor box. The loss value associated with an event is the difference between the backscattering levels measured before and after the event. To account for the OTDR’s dead zone, obtaining a backscattering level before the first connector requires inserting a certain length of fiber between the OTDR port and the first connector of the fiber under test. At the other end of the link, the same length of fiber is added after the last connector of the “receive” cable. In order to obtain an accurate, complete picture of the system’s loss—which is a critical aspect of fiber commissioning—a launch test cable should always be used at both ends of the fiber link. |
| Feature | Parameter |
| Weight | 325 g 0.72 lb 2.72 kg 6 lb 1.36 kg 3 lb |
| External Patchcord Length | 2 x 1.5 m 2 x 5 ft 2 x 2 m 2 x 6.6 ft 2 x 2 m 2 x 6.6 ft |
| FTB-LTC-B-1000 | Launch test cable, single module for FTB platform, singlemode fiber 9/125, 1000 m |
Запит ціни
