EXFO FTB-720-12CD оптичний часодомен рефлектометр

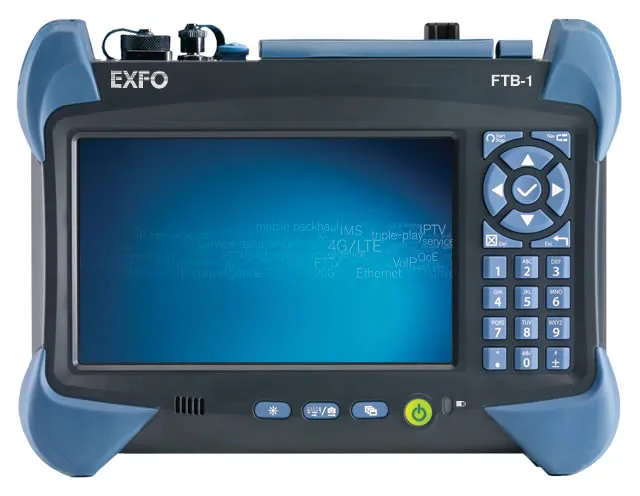

EXFO FTB-720-12CD OTDR
Запитати ціну
EXFO FTB-720-12CD is a multimode/singlemode network OTDR with 36 dB dynamic range, 0.8 m event dead zone, and 850/1300/1310/1550 nm testing capability.
Деталі продукту
| Модель | FTB-720-12CD |
| Виробник | EXFO |
| Категорія | Тестування мереж та волоконної оптики |
| Наявність | На замовлення |
Опис
Overview
The EXFO FTB-720-12CD is an Optical Time-Domain Reflectometer (OTDR) designed for everyday field testing in access networks. It provides automated troubleshooting capabilities for FTTA, LAN, and data center applications with combined multimode and singlemode wavelength support.
Key Features
- Dynamic range of up to 36 dB for comprehensive fiber characterization
- Event dead zone as low as 0.8 meter for precise event location
- Combined multimode (850/1300 nm) and singlemode (1310/1550 nm) wavelengths
- EF-ready with external launch mode conditioner for EF-compliant multimode results
- Live fiber testing capability at 1625 nm
- Real-time trace averaging with continuous laser mode for fiber monitoring
- Automode feature automatically adjusts distance range and pulse width
- iOLM ready with automated acquisition and clear go/no-go results
- Automatic microbend detection and identification
- Bidirectional analysis support via Fast Reporter 2 for precise splice characterization
- Data Center Cable Certification (iCERT) option for automated tier-2 certification
Applications
- Access network testing and troubleshooting
- LAN/WAN characterization
- Private network installation and verification
- Data center cable certification
- Fronthaul/backhaul testing (FTTA, FTTT, remote radio heads, DAS, small cells)
Характеристики
| Dynamic Range (range) | Medium Range: 34dB - 37dB |
| Wavelength | 850/1300nm |
| Form Factor | Handheld |
| Form Factor | Modular |
