Keysight 66319D/120 двовихідне мобільне комунікаційне джерело постійного струму

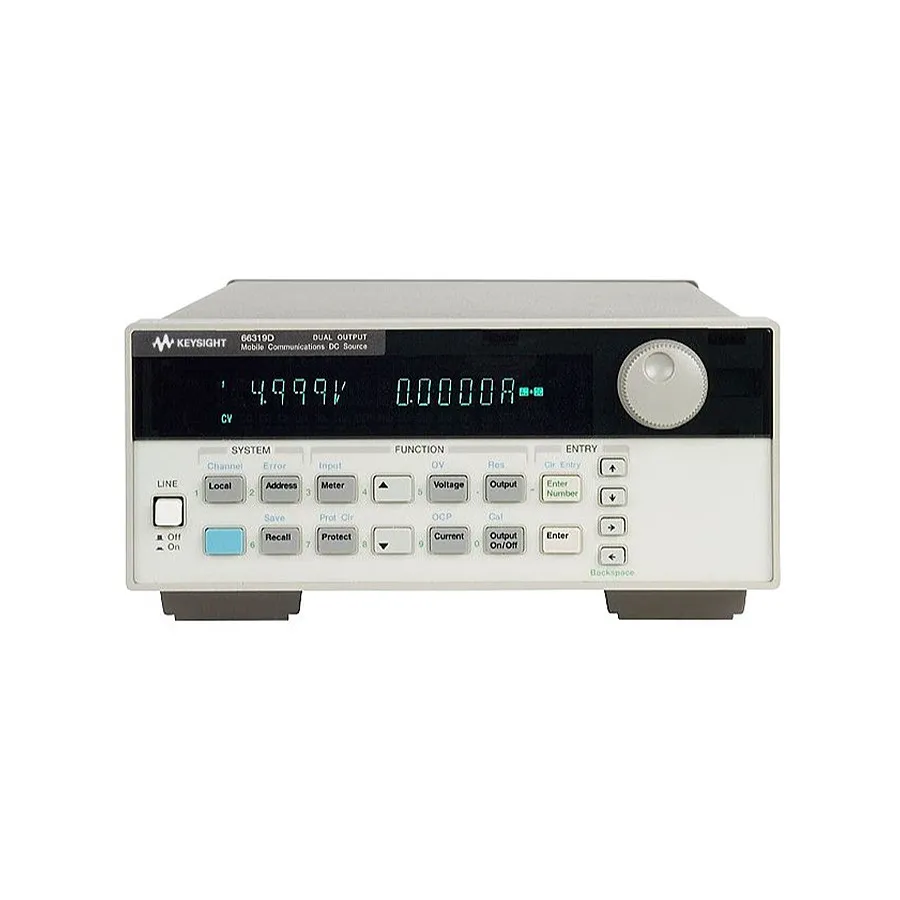

Keysight 66319D/120 Dual-Output Mobile Communication DC Source
Запитати ціну
Keysight 66319D/120 dual-output DC source with 15V/3A and 12V/1.5A ranges, integrated DVM, GPIB interface, battery emulation, and fast transient response for mobile device testing.
Деталі продукту
| Модель | 66319D/120 |
| Виробник | Keysight |
| Категорія | Багатоканальні джерела постійного струму |
| Наявність | На замовлення |
Опис
Overview
The Keysight 66319D/120 is a dual-output DC source engineered for mobile communications testing. It provides two independent outputs to simultaneously evaluate battery power and charger circuits, enabling comprehensive testing of phones and chargers with a single instrument. The 66319D variant includes a built-in digital voltmeter (DVM) for precision voltage measurement in addition to the capabilities of the 66319B.
Key Features
- Dual output design: 15V/3A (5A peak) and 12V/1.5A (5A peak) ranges
- Battery emulation with programmable internal resistance
- Fast voltage transient response (less than 20 ms) for maximum test throughput
- Built-in digital voltmeter for auxiliary voltage measurement
- GPIB interface with SCPI commands and VXI plug&play drivers
- Current sinking capability for charger circuit testing and calibration
- Programmable output response compensation for various wiring configurations
- Broken sense lead detection and protection
- 120 VAC input operation (104-127 VAC, 50/60 Hz)
- Remote sense for accurate voltage regulation
Applications
- Testing mobile phones with simultaneous battery and charger supply
- Battery emulation and characterization studies
- Current drain analysis in various device operating modes
- Charger circuit testing, validation, and calibration
- Wireless device R&D with data logging and statistical analysis
- Optimization of battery life and device power consumption
Характеристики
| Number of Outputs | Dual Output |
| Output Voltage | 15V x 2 |
| Output Current | 3A x 2 |
| Power Rating | 45 W |
| Input Voltage | 104-127 VAC |
| Interface | GPIB |
| Special Features | Digital Voltmeter, Battery Emulation |
| Series | 66300 Series |
| Display Digits | 8 Digits |
