Hipotronics HD106-A тестер гіпоту AC/DC

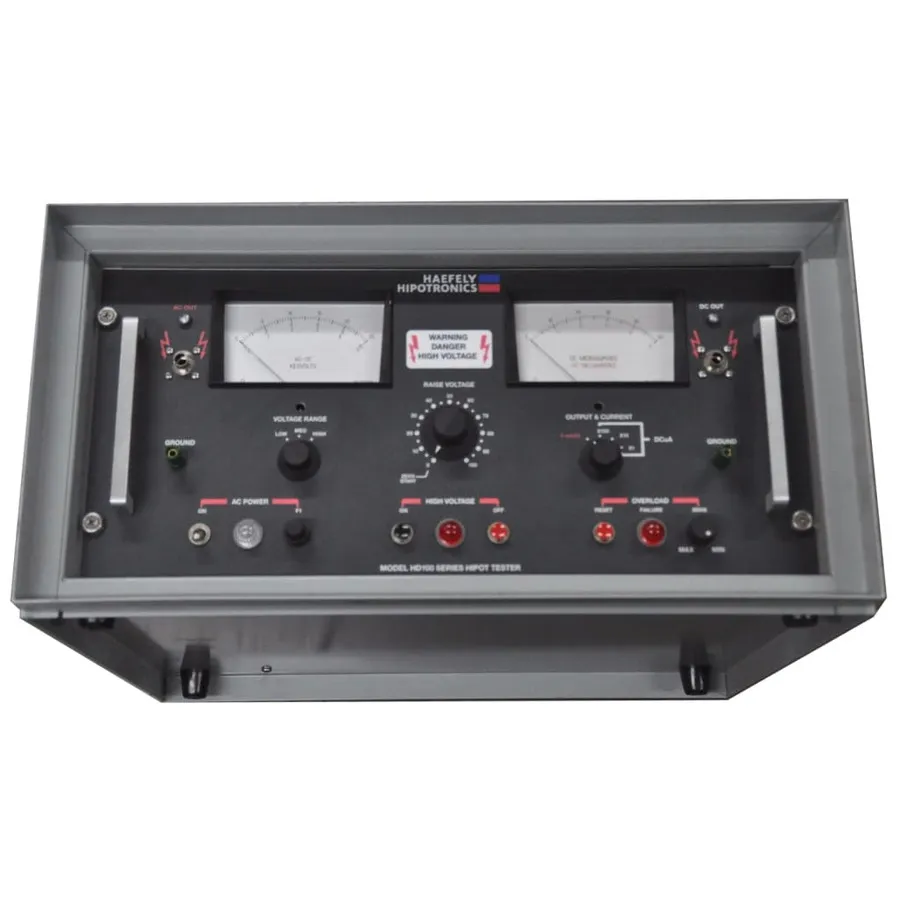

Hipotronics HD106-A AC/DC Hipot Tester
Запитати ціну
Hipotronics HD106-A is an AC/DC hipot tester with 6kV DC and 5kV AC output for high-voltage dielectric withstand testing.
Деталі продукту
| Модель | HD106-A |
| Виробник | Hipotronics |
| Категорія | Hipot-тестери |
| Наявність | На замовлення |
Опис
Overview
The Hipotronics HD106-A is a precision AC/DC hipot tester from the HD100 Series with higher voltage capabilities than the HD103-A model. Designed for production testing of electrical units, systems, and components requiring 6kV DC or 5kV AC testing, it combines both capabilities in a single instrument.
Key Features
- Dual AC/DC output: 6kV DC, 5kV AC in a single unit
- Continuously adjustable test voltage from zero to rated voltage
- Zero start interlock ensures safe operation before high voltage is energized
- Adjustable overload from 10% to 110% of rated current output
- Audible and visual alarms for overload indication
- Shielded output cable with shorting solenoid
- Automatic grounding of power supply and test object when HV is off
- Rack-mountable design for 19-inch standard racks
- HTL-S test leads included
Applications
- High-voltage dielectric withstand testing per UL, CSA, VDE, IEC, and MIL specifications
- Production testing of high-voltage transformers and electrical equipment
- Quality control and safety verification in manufacturing
Характеристики
| Operating Modes | AC, DC |
| AC Voltage | 5 kV |
| DC Voltage | 6 kV |
| Number of Channels | Single Channel |
| Series | HD100 Series |
| Current | 5 mA |
| Includes | Power Cable with US plug, Test Lead Set |
| Input Voltage | 120 VAC |
