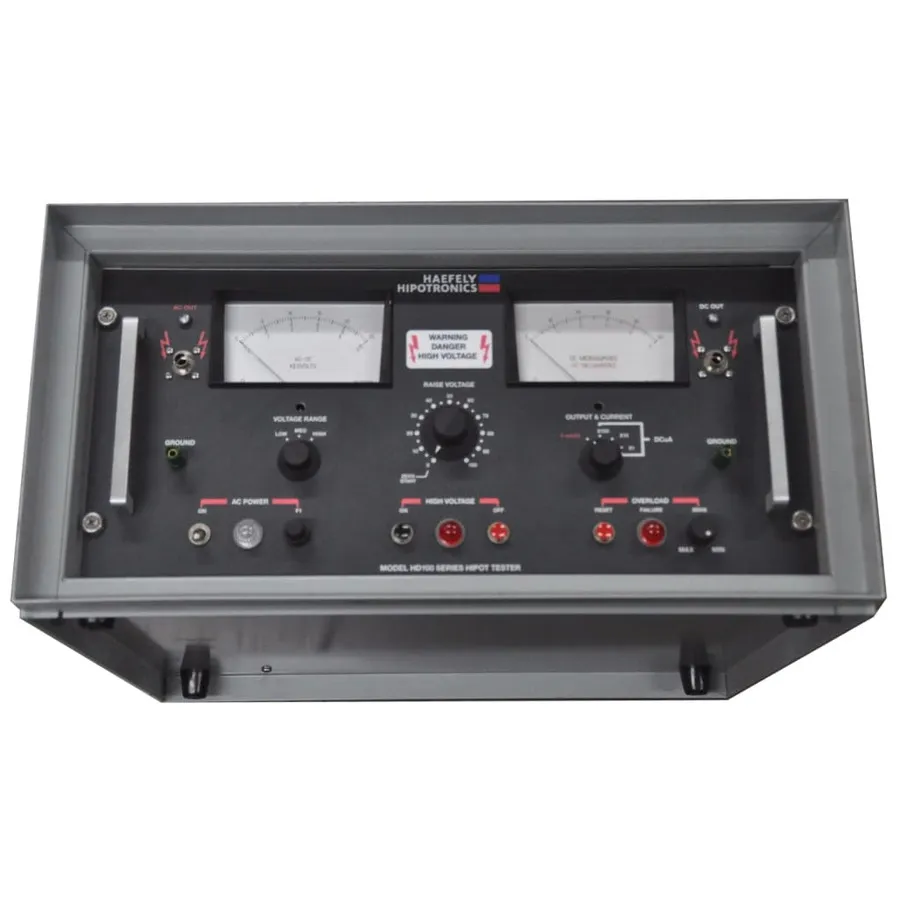

Hipotronics HD103-A тестер гіпоту AC/DC

Overview

The Hipotronics HD103-A is a precision AC/DC hipot tester from the HD100 Series, designed for production testing of electrical units, systems, and components. With combined AC (2.5kV) and DC (3kV) testing capabilities, it eliminates the need for separate instruments while providing accurate voltage measurements regardless of output loading.

Key Features

• Dual AC/DC output: 3kV DC, 2.5kV AC in a single unit
• Continuously adjustable test voltage from zero to rated voltage
• Zero start interlock ensures safe operation before high voltage is energized
• Adjustable overload from 10% to 110% of rated current output
• Audible and visual alarms for overload indication
• Shielded output cable with shorting solenoid
• Automatic grounding of power supply and test object when HV is off
• Rack-mountable design for 19-inch standard racks
• HTL-S test leads included

Applications

• Dielectric withstand testing per UL, CSA, VDE, IEC, and MIL specifications
• Production testing of transformers, motors, and electrical equipment
• Quality control and safety verification in manufacturing
