Siglent SHA862A портативний аналізатор спектру

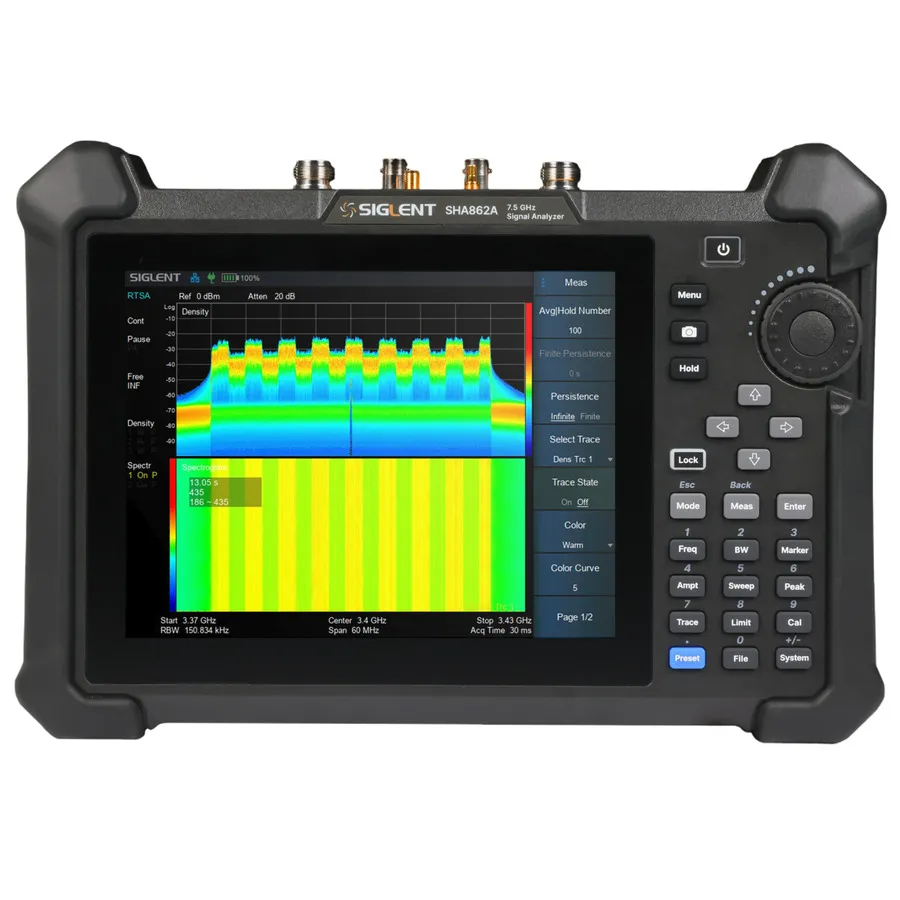

Siglent SHA862A Handheld Spectrum Analyzer
Запитати ціну
Siglent SHA862A handheld spectrum analyzer with 9 kHz-7.5 GHz range, -165 dBm DANL, 110 MHz real-time bandwidth, and 5G NR/LTE OTA testing for base station deployment.
Деталі продукту
| Модель | SHA862A |
| Виробник | Siglent |
| Категорія | Портативні аналізатори спектра |
| Наявність | На замовлення |
Опис
Overview
The Siglent SHA862A is an advanced handheld signal analyzer combining spectrum analysis, vector network analysis, and cable/antenna testing in a single compact device. Designed for efficient deployment and maintenance of 5G and LTE base stations, it supports frequency coverage from 9 kHz to 7.5 GHz with 110 MHz real-time bandwidth. Key capabilities include 5G NR/LTE over-the-air testing, real-time spectrum monitoring, pulse profiling, and GPS-enabled indoor/outdoor signal mapping.
Key Features
- Frequency Range 9 kHz to 7.5 GHz with 5 kHz usable resolution
- Displayed Average Noise Level -165 dBm/Hz for sensitive signal detection
- SSB Phase Noise -104 dBc/Hz at 1 GHz, 10 kHz offset
- 8.4-inch multi-touch screen with gesture operations support
- USB and LAN connectivity for remote control and data transfer
- 110 MHz Real-Time Spectrum Analysis bandwidth for transient capture
Applications
- 5G NR and LTE base station deployment and verification
- Network quality and beam performance assessment
- Signal integrity and interference analysis
- Indoor and outdoor coverage mapping with GPS
- IQ data acquisition and pulse profile measurements
Available Options
- SHA860-B1A: Analysis Bandwidth 40/110 MHz
- SHA860-RTA: Real-Time Spectrum Analysis with 3.51 µs POI
- SHA860-NR: 5G NR OTA Measurement with multi-PCI and multi-beam analysis
- SHA860-LTE: LTE FDD/TDD OTA Measurement with multi-PCI analysis
- SHA860-MAP: Indoor and outdoor coverage mapping
- SHA860-IQA: IQ Data Acquisition in 110 MHz Bandwidth
- SHA860-PU: Pulse Profile Measurements
- SHA860-EMI: EMI Measurement
- SHA860-VNA: Vector Network Analysis
- SHA860-GPS: GPS Receiver
Характеристики
| Frequency Range | 4.0 - 8.0 GHz |
| Maximum Frequency | 7.5 GHz |
| Tracking Generator | No |
| Preamplifier | Yes |
| Noise Floor | -165 dBm |
| Series | SHA860 Series |
| Battery Life | 2.5 hrs. |
| Connector Type | N (f) |
| Display | 8.4" TFT LCD Touch |
| Includes | Quick Start, USB type-C cable, Power cord, AC-DC adapter, Rechargeable lithium battery, Portable bag |
| Interface | USB, LAN |
| Minimum Frequency | 9 kHz |
| Number of Ports | 2 |
| Type | Handheld |
