Rohde & Schwarz FSH8.18 портативний аналізатор спектру

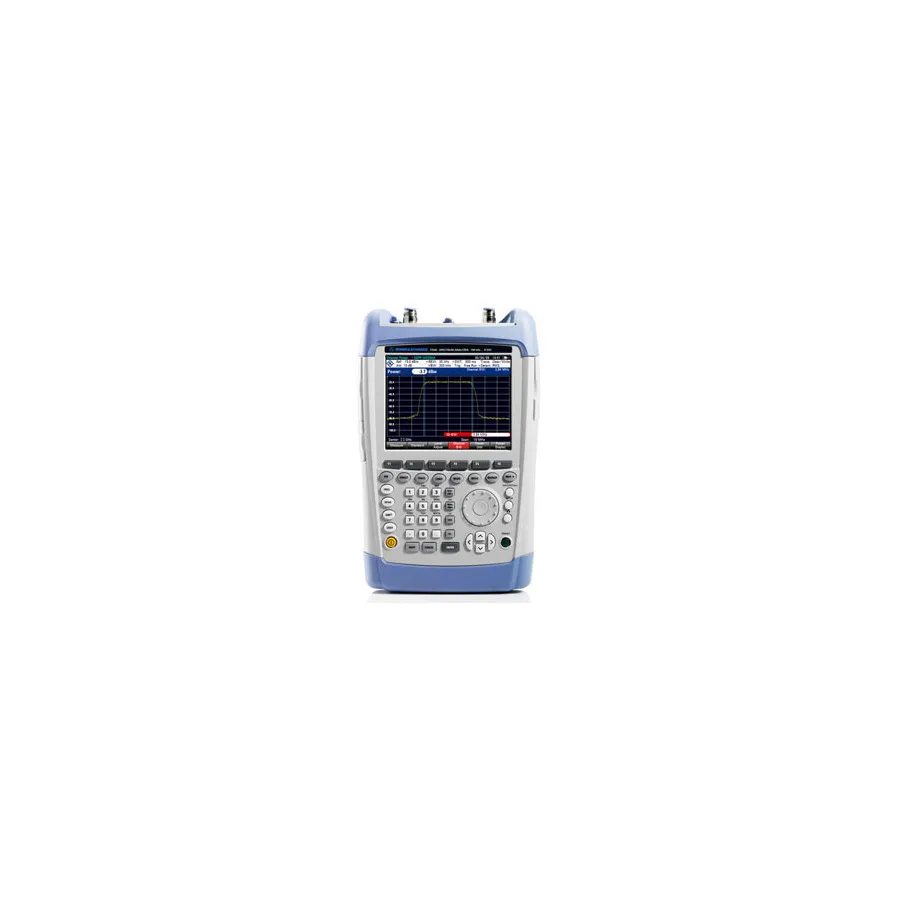

Rohde & Schwarz FSH8.18 Spectrum Analyzer
Rohde & Schwarz FSH8.18 spectrum analyzer with 8 GHz range, integrated tracking generator, and high sensitivity (≤161 dBm preamp) for advanced field testing and filter characterization.
Деталі продукту
| Модель | FSH8.18 |
| Виробник | Rohde & Schwarz |
| Категорія | Портативні аналізатори спектра |
| Наявність | На замовлення |
Опис
Overview
The Rohde & Schwarz FSH8.18 is a handheld spectrum analyzer with integrated tracking generator, combining measurement and signal generation capabilities for comprehensive field testing. With a frequency range from 9 kHz to 8 GHz and exceptional sensitivity (≤141 dBm standard, ≤161 dBm with preamplifier), it serves technicians and engineers requiring both analysis and signal sourcing in portable form. The 6.5-inch color display and battery operation enable extended field deployments.
Key Features
- Frequency range: 9 kHz to 8 GHz with resolution bandwidth 100 Hz to 3 MHz
- Integrated tracking generator for signal source and sweep capabilities
- High sensitivity: ≤141 dBm (standard), ≤161 dBm (with optional preamplifier)
- Large 6.5" color LCD display with rugged design
- Li-Ion battery providing up to 4.5 hours of operation
- Internal VSWR bridge for antenna and transmission line measurements
- Optional two-port network analyzer (FSH-K42)
- SD card slot for storing measurements and instrument settings
- USB and LAN interfaces for data transfer
- Directional power measurements up to 4 GHz
Applications
- Service and maintenance on transmitter stations
- Cable and antenna testing with signal excitation
- EMF (electromagnetic field) measurements
- EMI (electromagnetic interference) precompliance testing
- Filter and component frequency response measurement
- Signal monitoring and interference identification
- Interference hunting and localization
- Precise power measurements under operating conditions
Характеристики
| Frequency Range | 4.0 - 8.0 GHz |
| Maximum Frequency | 8 GHz |
| Tracking Generator | Yes |
| Preamplifier | Yes |
| Noise Floor | -161 dBm |
| Series | FSH Series |
| Alternate Product Number | 1309.6000.18 |
| Battery Life | 3 hrs. |
| Connector Type | N (f) |
| Display | 7" Antiglare Color Touch |
| Includes | Lithium-ion battery pack, LAN and USB cables, AC power supply, CD-ROM with and documentation, quick start guide |
| Interface | USB, LAN |
| Minimum Frequency | 9 kHz |
| Number of Ports | 2 |
| Product Type | Handheld |
| Type | Handheld |
