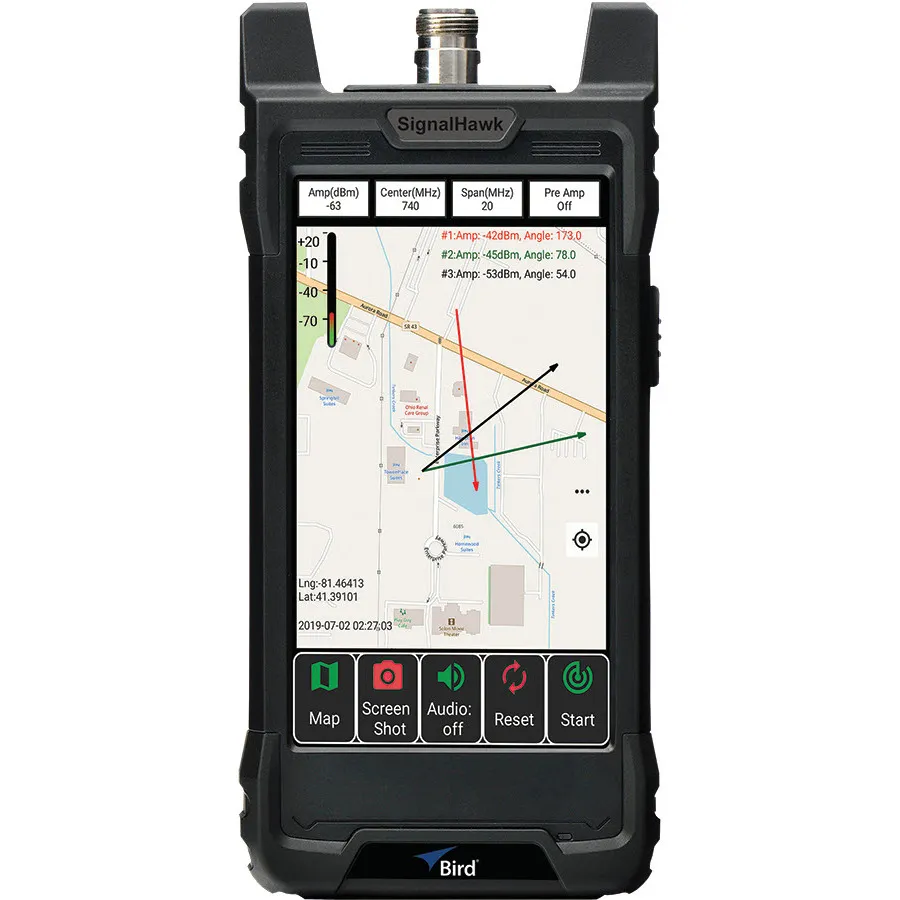

Bird SH-60S-AOA Портативний аналізатор спектра

Overview

The Bird SH-60S-AOA is an advanced handheld RF spectrum analyzer designed for field engineers, technicians, and military personnel. It extends the SH-60S-TC by adding Angle of Arrival (AOA) technology, allowing users to triangulate the location of RF interferers on digital maps. The analyzer covers 9 kHz to 6 GHz and quickly identifies rogue signals, unwanted interferers, and spectrum dead spots in the field.

Key Features

• Frequency range: 9 kHz to 6 GHz with 20 dBm DANL
• Angle of Arrival technology with GPS and OpenStreetMap integration for interferer triangulation
• Two-level internal preamplifier
• Spectrogram and waterfall display modes for intermittent signals
• Multi-touch touchscreen with intuitive menus
• More than 2x faster sweep speeds than competitive analyzers
• High-resolution, full-color display for indoor or outdoor use
• Rugged and weather-resistant construction
• 5 hours continuous battery operation
• Bird RF Meter App for sensor interoperability

Predefined Measurements

• Channel Power
• Adjacent Channel Power Ratio (ACPR)
• Phase Noise
• N dB Down Bandwidth
• Occupied Bandwidth (OBW)
• Field Strength
• FM Demodulation
• CNR Loss (GNSS Signal Quality)
• Spectrum Masking and Limit Lines

Included Accessories

• Hard carry case
• Soft carry case
• AC adapter (12VDC output)
• Stylus
• USB drive
• USB adapter
• Manual
• Battery
