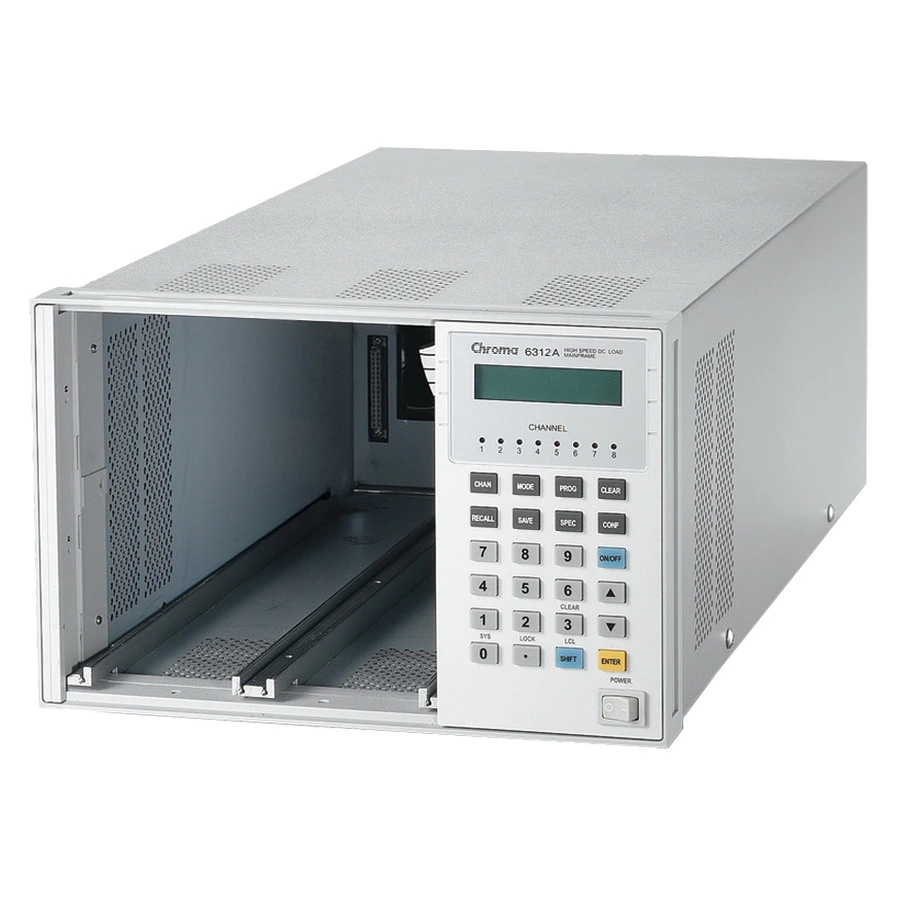

Chroma 6312A шасі електронного навантаження постійного струму

Overview

The Chroma 6312A is a mainframe for the 6310A series programmable DC electronic load modules, accommodating two load modules for flexible configuration. Designed for comprehensive testing of multi-output power supplies, DC/DC converters, chargers, and power electronic components, it provides a modular platform capable of supporting up to 1400W total power with a wide voltage range of 0-600V. Full compatibility with the 6310 series ensures seamless integration into existing test systems.

Key Features

• Mainframe capacity: accommodates two load modules
• Compatible with eight types of 6310A series modules with power ratings from 200W to 1200W
• Total parallel power support up to 1400W with wide voltage range 0-600V
• Flexible operation modes: Constant Current (CC), Constant Resistance (CR), Constant Power (CP), Constant Voltage (CV)
• Dynamic loading up to 20 kHz with slew rates from 0.32 mA/μs to 10 A/μs
• 16-bit precision voltage and current measurement with dual-range capability
• Up to 100 programmable sequences with front panel operation
• Over Current Protection (OCP) testing function
• Short circuit simulation and remote sensing capability
• Multiple interfaces: USB, GPIB, and RS-232C

Available Modules

• 63101A: 200W, 80V, 40A
• 63102A: 100W × 2, 80V, 20A
• 63103A: 300W, 80V, 60A
• 63105A: 300W, 500V, 10A
• 63106A: 600W, 80V, 120A
• 63107A: 30W & 250W, 80V, 5A & 40A
• 63108A: 600W, 500V, 20A
• 63112A: 1200W, 80V, 240A
• 63123A: 350W, 120V, 70A

Applications

• Multi-output power supply testing and validation
• DC/DC converter characterization and design verification
• Battery charger testing and evaluation
• Power electronic component assessment
• Production line testing and incoming inspection
