Keysight N8754A блок живлення постійного струму

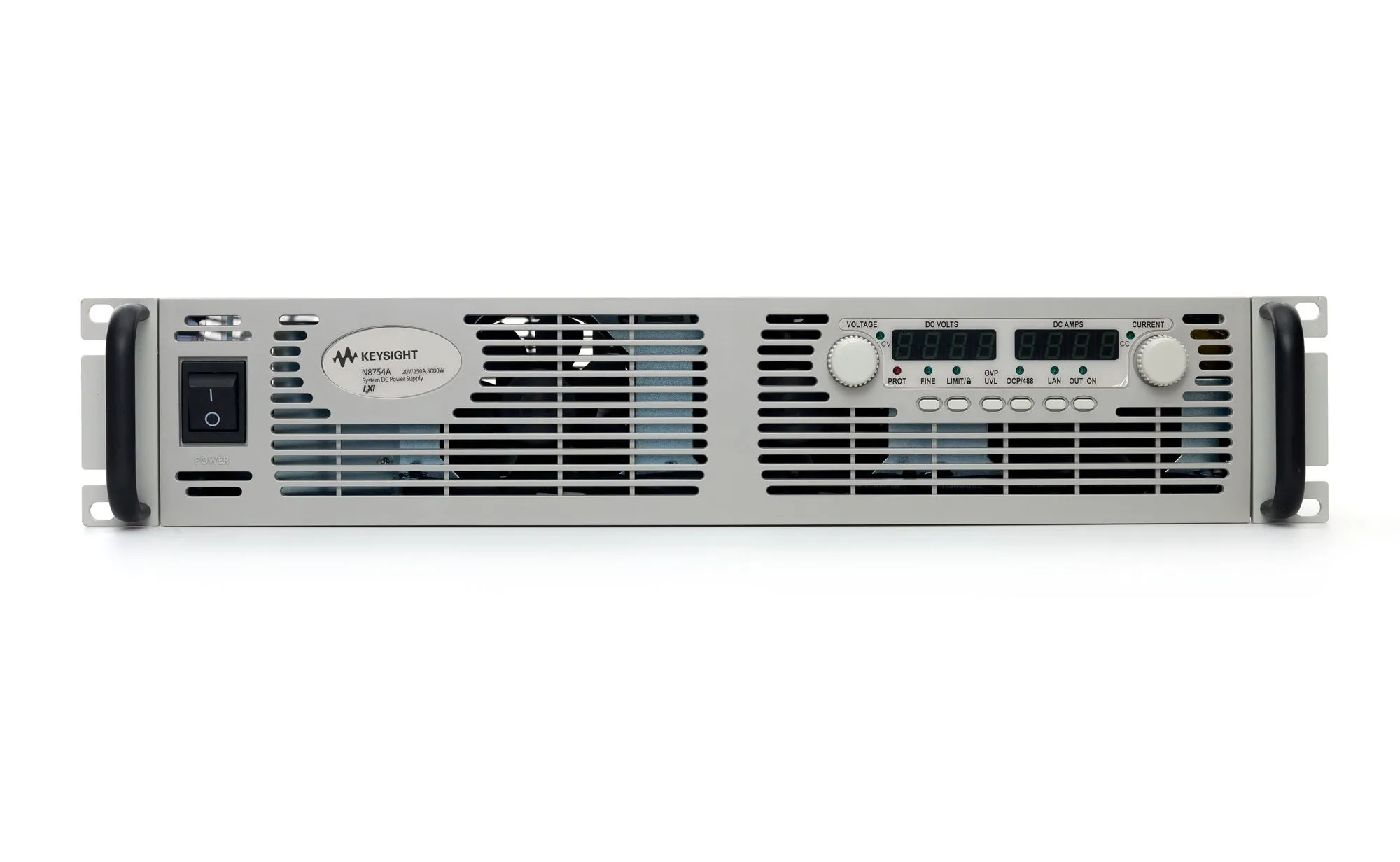

Keysight N8754A DC Power Supply
Запитати ціну
Keysight N8754A single-output DC power supply with 20V, 250A, 5000W output, compact 2U package, and low-noise design.
Деталі продукту
| Модель | N8754A |
| Виробник | Keysight |
| Категорія | Джерела живлення постійного струму |
| Наявність | На замовлення |
Опис
Overview
Keysight N8754A is a programmable, single-output DC power supply delivering 20V at 250A with 5000W power output. Designed for automated test equipment (ATE) and laboratory applications, it features a compact 2U package with high power density and front-to-back airflow for simplified rack mounting. The N8754A is part of the N8700 series ATE system power supplies.
Key Features
- Single output: 20V, 250A, 5000W power rating
- Compact 2U package with high power density
- Low noise output: 10mV RMS
- Programming accuracy: 0.025% + 15mV (voltage), 0.1% + 750mA (current)
- Output ripple and noise: 75mV peak-to-peak, 10mV RMS
- Extensive device protection: overcurrent, overvoltage, and under-voltage protection
- Overtemperature protection
- Simple front-panel operation with separate knobs for voltage and current
- Modern I/O: USB, LAN (LXI-Core), and GPIB interfaces
- Front-to-back airflow simplifies rack mounting and allows stacking
- Flexible AC input options: 208V, 230V, or 400V
- Connect up to 4 units in parallel for higher current output
Applications
- Automated test equipment (ATE) systems
- Laboratory power applications
- Production and manufacturing test environments
- High-current device testing
Характеристики
| Feature | Parameter |
| DC Output Ratings | Voltage: 20V Current: 250A Power: 5000W |
| Programming Accuracy | Voltage: 0.025% + 15mV Current: 0.1% + 750mA |
| Output Ripple and Noise | CV p-p: 75mV CV rms: 10mV |
| N8754A | 20 V250 A5000 W |
