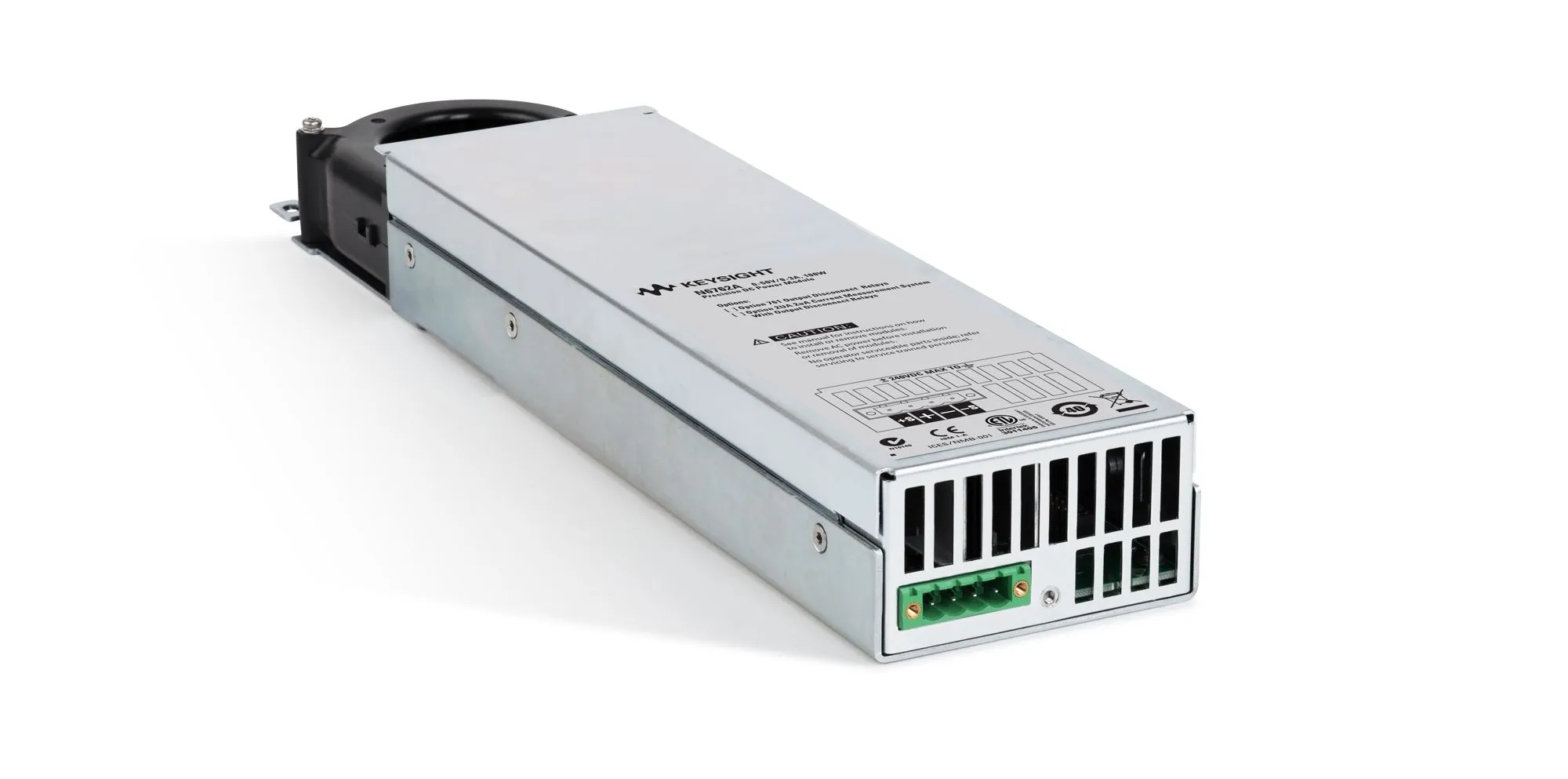

Keysight N6762A прецизійний модуль живлення постійного струму

Overview

The Keysight N6762A is a 100 W precision DC power module designed for applications requiring high-precision voltage and current control with minimal noise. It features autoranging outputs that maximize compliance voltage while maintaining accuracy, and provides simultaneous digitization of voltage and current with oscilloscope-like data buffering for detailed waveform capture and analysis.

Key Features

• Programmable output voltage: 0 to 60 V
• Output current: 0 to 3 A
• Output power: 100 W (configurable to 50 W for lower power applications)
• Autoranging outputs for maximum flexibility across test requirements
• Voltage programming accuracy: 0.016% + 6 mV
• Voltage ripple and noise: 4.5 mVpp / 350 µV rms
• Current ripple and noise: 2 mA rms
• Fast programming up to 50x faster than conventional power supplies
• Simultaneous voltage and current digitization with data buffer
• GPIB, LAN, USB, and LXI compliance
• Optional extended measurement range down to 1 µA with option 2UA
• Overvoltage, overcurrent, and overtemperature protection
• Quick disconnect connector included

Applications

• High-precision power supply testing and characterization
• Leakage current and sleep-mode current measurements
• Device characterization and validation
• Automated test equipment (ATE) integration
• Bench-top power supply analysis and validation
