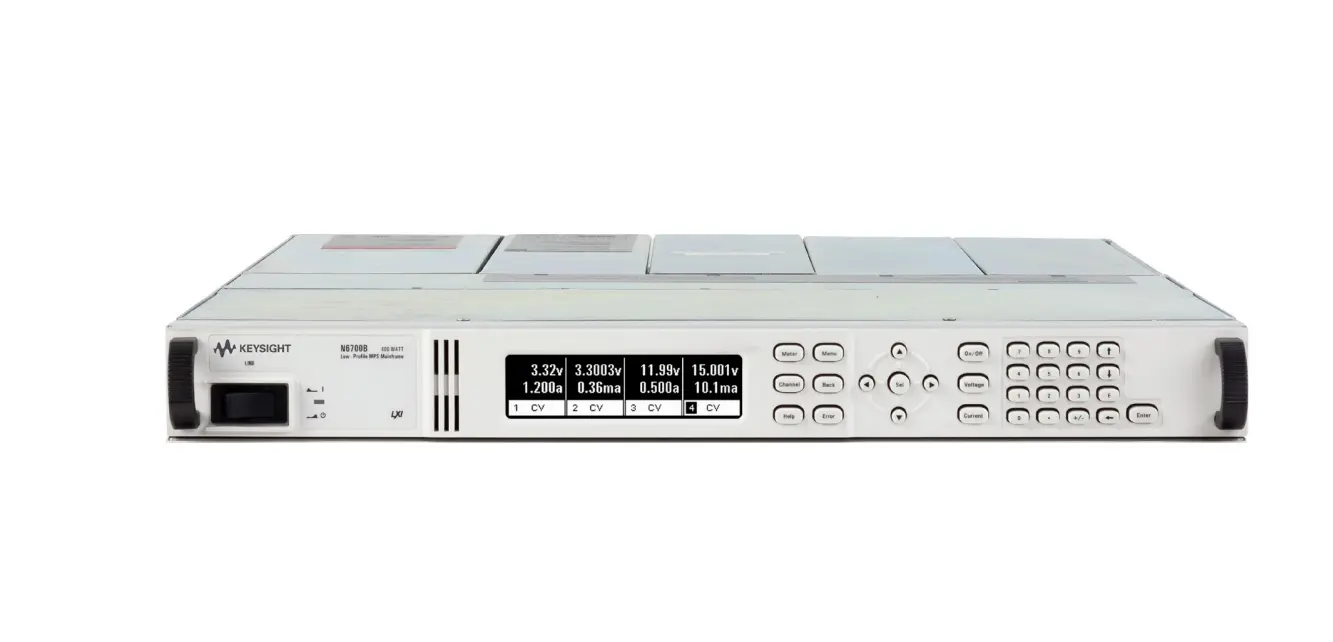

Keysight N6700B модульна система живлення

Overview

The Keysight N6700B is a 400W, 1U high modular power system mainframe designed for ATE and production test environments. It accepts 1 to 4 N6700 series DC power modules in any combination, providing flexible power solutions from 20W to 300W per module. The system features standard GPIB, LAN, and USB interfaces with LXI Class C compliance.

Key Features

• Maximum output power: 400W (sum of module power)
• Compact 1U form factor with 4-slot design
• Accepts 1 to 4 N6700 series DC power modules (20–300W modules available)
• Connectivity: GPIB, LAN, USB with LXI Class C compliance
• Fast command processing and improved throughput
• Optional output disconnect relays and High Speed Test Extensions

Electrical Specifications

• AC Input: 100–240 VAC, 50/60/400 Hz nominal
• Input Range: 86–264 VAC
• Power Consumption: 1000 VA typical
• Internal fuse protection (not customer accessible)
• INH inhibit response: 5 µs to shutdown
• Fault response on coupled outputs: <10 µs

Applications

• ATE systems for R&D, design validation, and manufacturing
• Bias power and stimulus in production test environments
• Systems requiring flexible, scalable DC power solutions
