Keysight E3646A блок живлення постійного струму

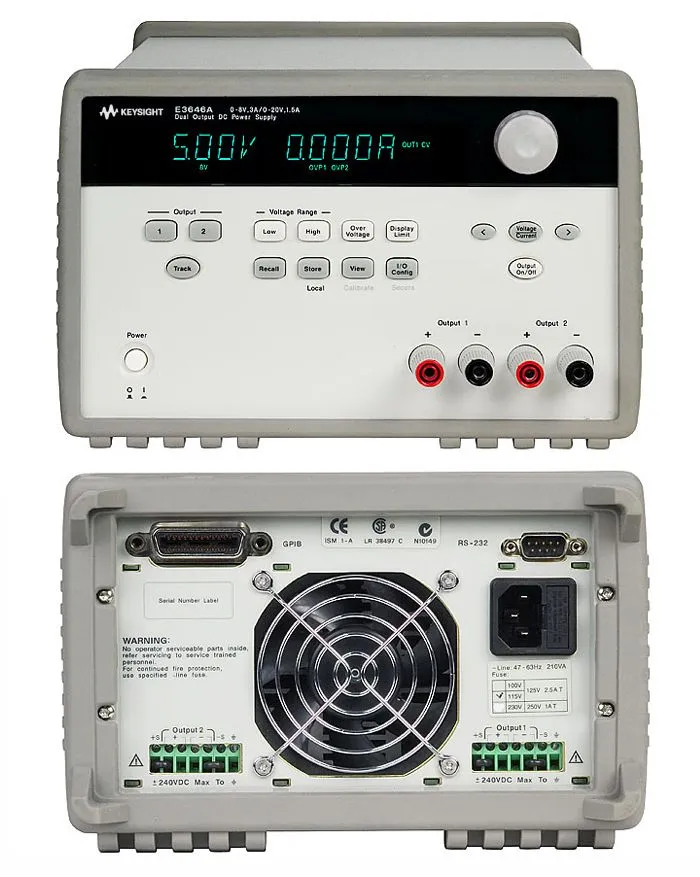

Keysight E3646A DC Power Supply
Запитати ціну
Keysight E3646A — 60W dual-output bench power supply with dual-range outputs (0-8V/3A or 0-20V/1.5A each), low noise, and GPIB/RS232 control.
Деталі продукту
| Модель | E3646A |
| Виробник | Keysight |
| Категорія | Джерела живлення постійного струму |
| Наявність | На замовлення |
Опис
Overview
The Keysight E3646A is a 60W benchtop DC power supply featuring two independent outputs with dual-range flexibility. Each output can deliver 0-8V/3A or 0-20V/1.5A, providing flexible power distribution for multi-device testing. Designed for electronics development and testing, it combines precise voltage and current control with low noise output, excellent load regulation, and straightforward operation.
Key Features
- Two independent outputs with dual-range flexibility
- Each output selectable: 0-8V/3A (low range) or 0-20V/1.5A (high range)
- Low output noise with ripple and noise less than 500 µVrms
- Load regulation better than 0.01% for stable output
- Meter accuracy better than 0.05%
- Store and recall up to five different operating states
- Highly visible vacuum fluorescent display
- Automation via GPIB and RS232 connectivity
Applications
- Multi-device testing with independent power supplies
- Electronics component and circuit verification
- Symmetric dual-supply testing for op-amps and analog circuits
- Automated production testing via GPIB/RS232 control
- Consumer, automotive, healthcare, and semiconductor device testing
Характеристики
| Maximum Voltage | 20V |
| Maximum Current | 1.5A |
| Maximum Power | 60W |
| Channel/Port Count | 2 |
| Number of Outputs | Dual Output |
| Output Voltage | 8V x 2/20V x 2 |
| Output Current | 1.5A x 2/3A x 2 |
| Power Rating | 60 W |
| Input Voltage | 100/115 VAC |
| Interface | GPIB, RS-232 |
| Special Features | Remote Sense |
| Display | VFD |
| Series | E3640 Series |
| Mounting Type | Bench Top |
| Programmable | Yes |
