GW Instek GPP-6030 (GPIB) блок живлення постійного струму

Overview

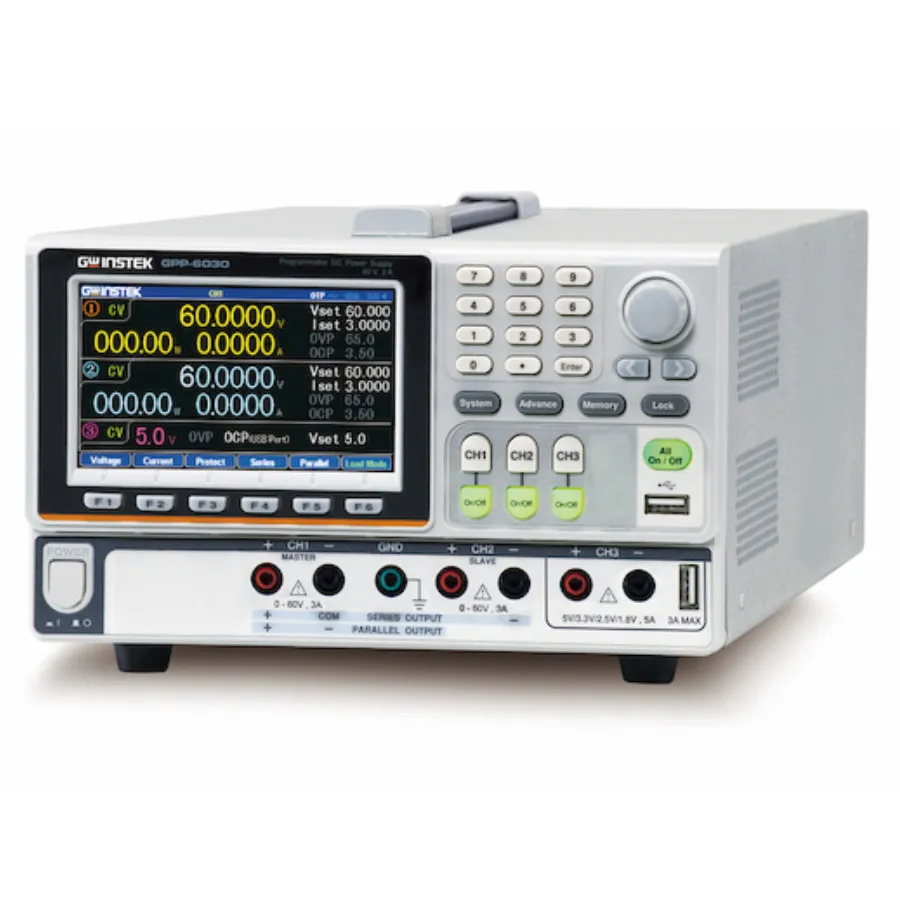

The GW Instek GPP-6030 (GPIB) is a three-channel programmable DC power supply with 385W maximum output and GPIB interface for remote automation and control. It provides two high-voltage channels rated at 0–60V/0–3A and a third fixed-voltage channel supporting 1.8V, 2.5V, 3.3V, or 5.0V at 5A. With integrated GPIB, LAN, RS-232, and USB connectivity, the GPP-6030 (GPIB) is optimized for automated test systems and laboratory environments requiring multi-protocol remote control.

Key Features

• 4.3-inch TFT LCD with setting values, measurements, and waveform display
• 1mV/0.1mA setting resolution; 0.1mV/0.1mA read-back resolution
• Low ripple noise: ≤1mVrms/≤2mArms
• Transient response time: ≤100µs
• Load function with CC, CV, and CR modes for battery and component testing
• Hardware protection: overvoltage, overcurrent, and overtemperature
• Series/parallel tracking without external wiring
• Output recorder function with 1-second minimum interval
• Sequential output with 8 built-in waveform templates
• GPIB interface plus LAN, RS-232, and USB for flexible connectivity
• Independent on-off control per channel

Applications

• Automated test systems and ATE integration
• Research and development laboratories
• Battery charge/discharge profiling and validation
• Electronic component and module testing

Included Accessories

• GTL-104A test leads (set of 3)
• Power cord
• Quick start manual and full user documentation
