B&K Precision XLN10014-GL джерело постійного струму високої потужності

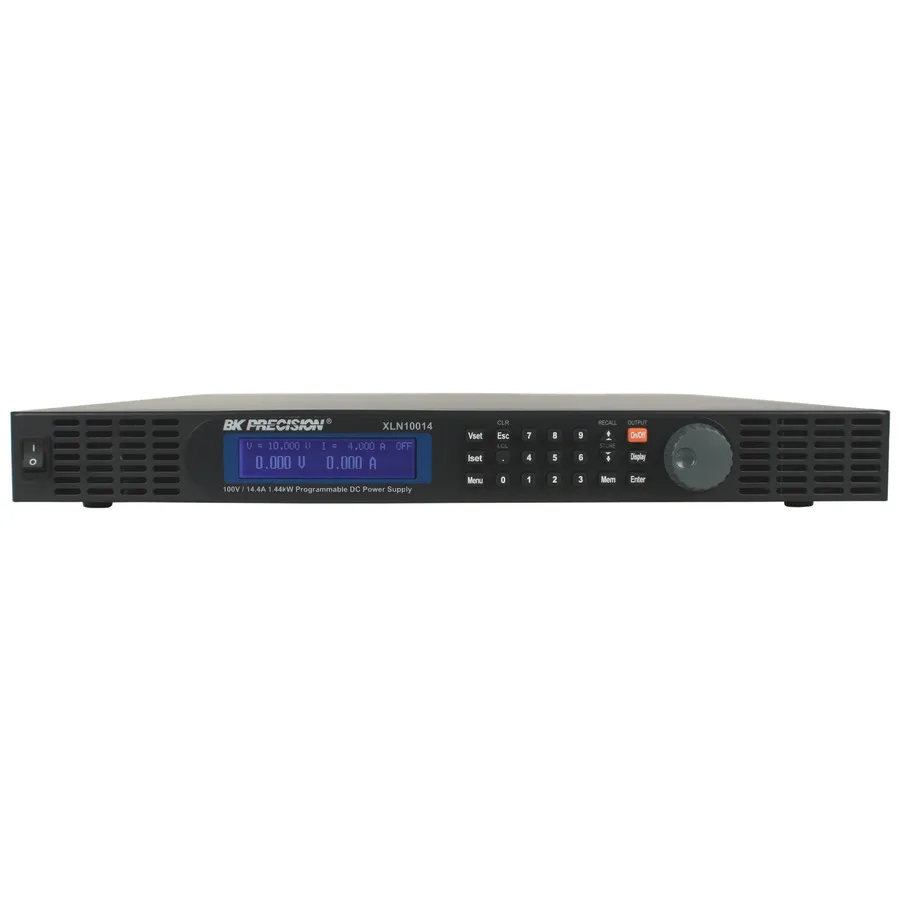

B&K Precision XLN10014-GL High-Current DC Power Supply
Запитати ціну
B&K Precision XLN10014-GL is a programmable DC power supply with 0-100V at 0-14.4A (1.44kW), featuring GPIB and LAN interfaces for remote operation.
Деталі продукту
| Модель | XLN10014-GL |
| Виробник | B&K Precision |
| Категорія | Джерела живлення постійного струму |
| Наявність | На замовлення |
Опис
Overview
The B&K Precision XLN10014-GL is a single-output programmable DC power supply from the XLN series with GPIB and LAN connectivity. It is designed for high-current applications requiring remote control and integration with automated test systems.
Key Features
- Single Output: 0-100V at 0-14.4A, 1.44kW maximum power
- GPIB and LAN interfaces for networked test environments
- Auxiliary Output: 5V / 1A
- Master/Slave operation for parallel or series connection of multiple units
- List mode: Execute test sequences with up to 150 steps from internal memory
- External analog programming interface for flexible control
- Display resolution: 1 mV / 1 mA
- Remote control via GPIB or Ethernet LAN
Applications
- Automated test equipment systems
- Laboratory and research applications
- Production testing and quality control
- Component characterization and development
Характеристики
| Voltage Range Selector | 100-199 |
| Output Voltage | 100 V |
| Current Range Selector | 10-19.9 |
| Output Current | 14.4 A |
| Power Range Selector | 1,000-2,499 |
| Power Rating | 1.44 kW |
| Mounting Type | Bench Top |
| Input Voltage | 100-240 VAC |
| Series | XLN Series |
| Display | LCD |
| Interface | GPIB,USB,LAN,RS-485 |
| Number of Outputs | Single Output |
| Programmable | Yes |
| Rack Space | 1U |
| Special Features | Low Noise, Remote Sense |
