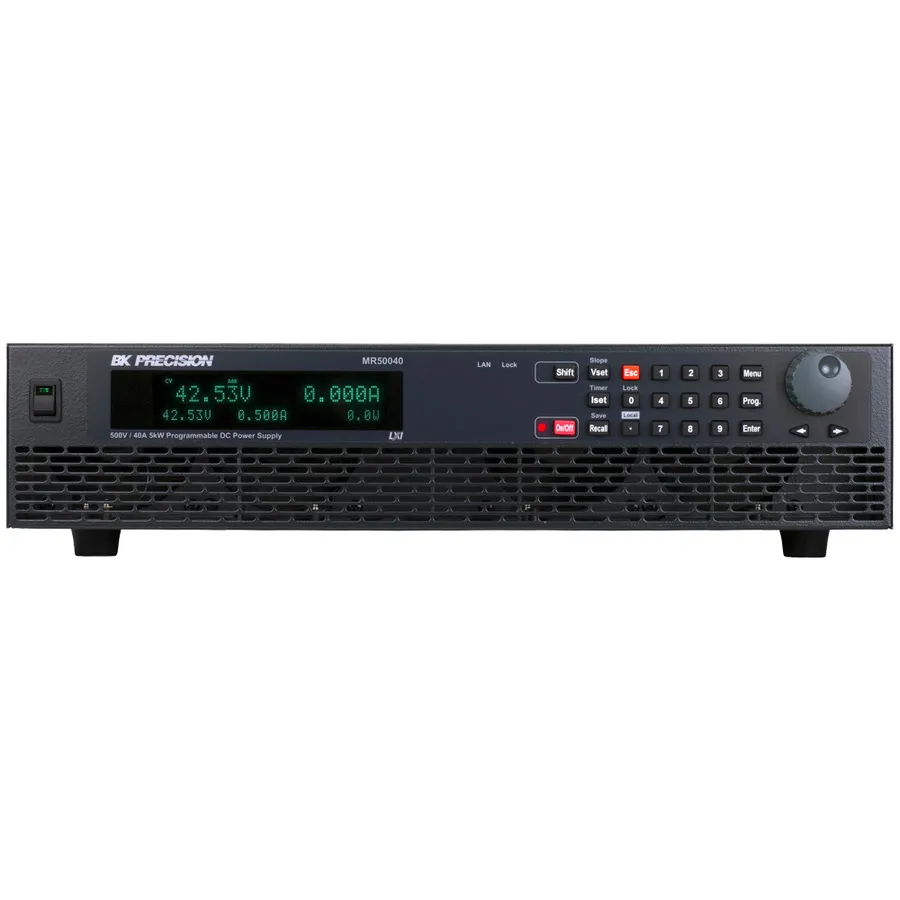

B&K Precision MR50040 Блок живлення HV DC

Overview

The B&K Precision MR50040 is a high-voltage DC power supply delivering 5 kW of clean output power in a compact 2U form factor. Part of the MR Series, which includes 250V, 500V, and 1000V models, the MR50040 is ideal for both benchtop use and integration into automated test systems. It features an intuitive user interface, fast command response times, excellent regulation, and low noise characteristics.

Key Features

• 500V output with 40A maximum current and 5kW power rating
• Multi-range operation capability, replacing multiple fixed-range supplies
• Compact 2U form factor for efficient rack space utilization
• Single-phase AC input for convenient operation
• Multiple interfaces: USB, RS232, GPIB, and LXI-compliant LAN
• Built-in Solar Array Simulator (SAS) function for PV inverter testing
• Fast command response time of 10 ms
• Comprehensive protection: overvoltage (OVP), overcurrent (OCP), overpower (OPP), and overtemperature (OTP)
• Adjustable voltage and current slope (rise and fall time)
• Internal list mode programming for complex sequences
• Remote sense capability to compensate for voltage drop
• Parallel operation for increased output power
• Multi-unit control supports up to 30 power supplies from one PC
• Included soft panel software for remote control and data logging
• cTUVus certification compliant with UL and CSA safety standards

Applications

• Automated test system integration for production testing
• Solar inverter and photovoltaic system testing
• Benchtop research and development
• High-voltage component testing and validation
