ITECH IT8514B+ стійковий електронний навантажувач постійного струму

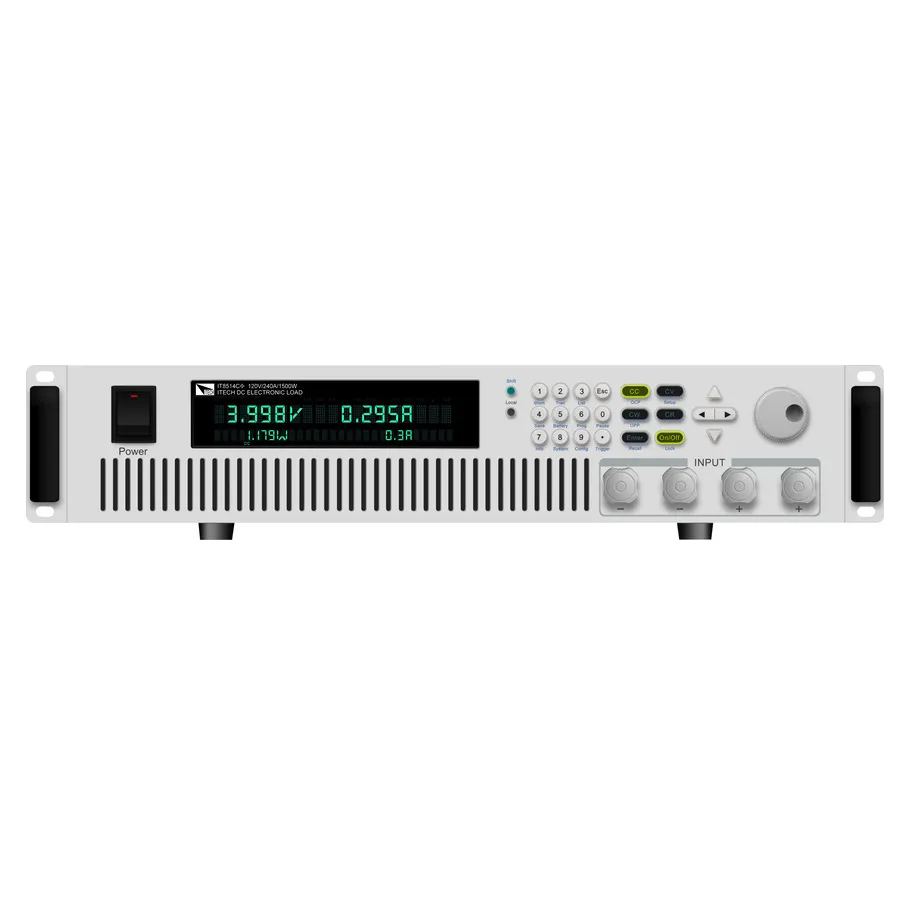

ITECH IT8514B+ Rack Mount DC Electronic Load
Запитати ціну
ITECH IT8514B+ is a 1500W programmable DC electronic load (60A @ 500V) with CV, CC, CR, CP modes, battery testing, and built-in RS232/USB interfaces for automated test systems.
Деталі продукту
| Модель | IT8514B+ |
| Виробник | ITECH |
| Категорія | Електронні навантаження постійного струму |
| Наявність | На замовлення |
Опис
Overview
The ITECH IT8514B+ is a rack-mount programmable DC electronic load from the IT8500+ series. Engineered for middle and high-end testing applications, it supports static and dynamic testing of power supplies, batteries, DC-DC converters, and battery chargers. The IT8514B+ includes built-in RS232 and USB communication interfaces for integration into automated test systems.
Key Features
- Four operating modes: CV, CC, CR, CP
- Power capacity: 1500W, 60A at 500V
- Battery, automatic, OPP, OCP, and CR-LED test functions
- Dynamic mode up to 10 kHz
- Voltage and current measurement resolution: 0.1 mV / 0.1 mA
- Remote sense capability
- Short circuit simulation function
- Current monitoring
- Power-off memory with 100 group capacity
- Built-in RS232 and USB interfaces
- Optional RS485 interface
Applications
- Automated power supply testing systems
- Battery and charger characterization
- High-voltage DC-DC converter evaluation
- System integration and validation testing
Характеристики
| Power Range Selector | 1,000-2,499 |
| Current Range Selector | 50-99.9 |
| Voltage Range Selector | 500-999 |
| Maximum Power | 1.5 kW |
| Maximum Current | 60 A |
| Maximum Voltage | 500 V |
| Mounting Type | Rack Mount |
| Series | IT8500+ Series |
| Includes | Power cord, Factory calibration certificate |
| Interface | USB,RS232 |
| Number of Outputs | Single Output |
