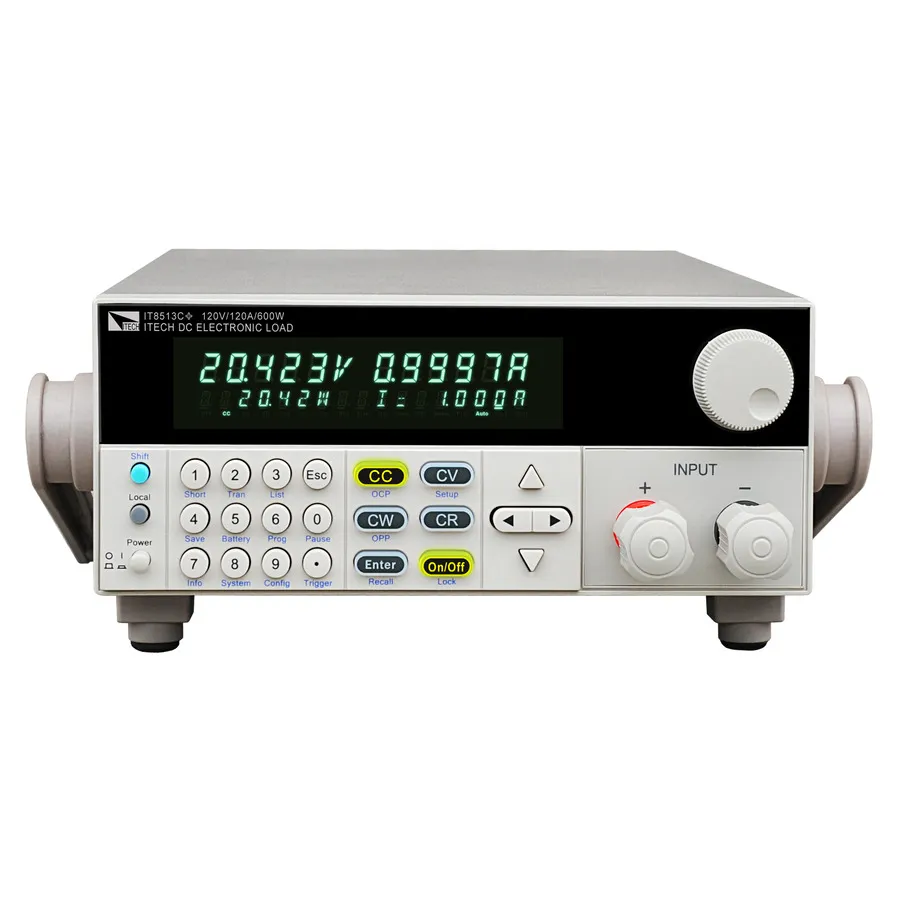

ITECH IT8513C+ настільний електронний навантажувач постійного струму
ITECH IT8513C+ Bench Top DC Electronic Load
Запитати ціну
ITECH IT8513C+ is a 600W programmable DC electronic load (120A @ 120V) with CV, CC, CR, CP modes and testing functions for power supplies, batteries, and DC-DC converters.
Деталі продукту
| Модель | IT8513C+ |
| Виробник | ITECH |
| Категорія | Електронні навантаження постійного струму |
| Наявність | На замовлення |
Опис
Overview
The ITECH IT8513C+ is a bench-top programmable DC electronic load from the IT8500+ series. Designed for middle and high-end applications, it provides versatile testing solutions for power supplies, batteries, DC-DC converters, and battery chargers. The instrument features simple front-panel keypad control for online voltage measurements, adjustments, and short circuit simulation.
Key Features
- Four operating modes: CV, CC, CR, CP
- Power capacity: 600W, 120A at 120V
- Battery, automatic, OPP, OCP, and CR-LED test functions
- Dynamic mode up to 10 kHz
- Voltage and current measurement resolution: 0.1 mV / 0.1 mA
- Remote sense capability
- Short circuit simulation function
- Current monitoring
- Power-off memory with 100 group capacity
- Optional USB, RS232, and RS485 interfaces
Applications
- Power supply design and testing
- Battery and charger evaluation
- DC-DC converter validation
- Bench-top electronic development and troubleshooting
Характеристики
| Power Range Selector | 500-999 |
| Current Range Selector | 100-199 |
| Voltage Range Selector | 100-199 |
| Maximum Power | 600 W |
| Maximum Current | 120 A |
| Maximum Voltage | 120 V |
| Mounting Type | Bench Top |
| Series | IT8500+ Series |
| Includes | Power cord, Factory calibration certificate |
| Number of Outputs | Single Output |
