B&K Precision 8600B DC електронний навантажувач

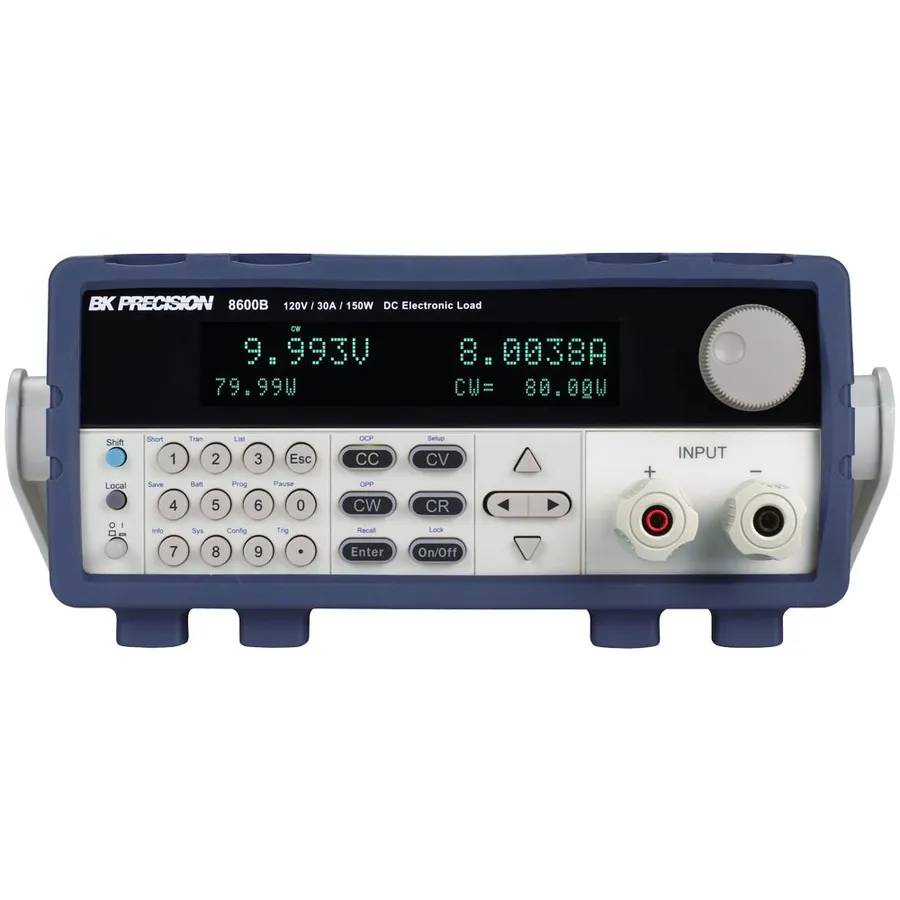

B&K Precision 8600B DC Electronic Load
Запитати ціну
B&K Precision 8600B DC electronic load features 150W power, 30A current, CC/CV/CR/CW modes, and 16-bit measurement resolution without GPIB interface.
Деталі продукту
| Модель | 8600B |
| Виробник | B&K Precision |
| Категорія | Електронні навантаження постійного струму |
| Наявність | На замовлення |
Опис
Overview
The B&K Precision 8600B is a compact programmable DC electronic load from the 8600 Series, designed for testing and evaluating DC power sources. It provides versatile operating modes and high-resolution measurements at 120V and 30A capacity, without GPIB connectivity.
Key Features
- Four operating modes: Constant Current (CC), Constant Voltage (CV), Constant Resistance (CR), and Constant Power (CW)
- 150W power rating with 30A maximum current and 0-120V voltage range
- 16-bit voltage and current measurement system for high-precision testing
- Transient mode up to 25 kHz for dynamic load testing
- List mode function for complex test sequences
- Adjustable slew rate in CC mode
- Built-in battery test function with multiple stop conditions
- CR-LED mode to simulate typical LED loading behavior
- Remote voltage sensing capability
- Analog current control and monitoring
- Standard USB (USBTMC) and RS232 interfaces
- Comprehensive protection: OVP, OCP, OPP, OTP, and reverse voltage protection
Applications
- Testing DC power supplies and converters
- Battery and battery charger evaluation
- Dynamic load simulation
- Power source validation and protection testing
Характеристики
| Power Range Selector | 1-199 |
| Current Range Selector | 30-49.9 |
| Voltage Range Selector | 100-199 |
| Maximum Power | 150 W |
| Maximum Current | 30 A |
| Maximum Voltage | 120 V |
| Mounting Type | Bench Top |
| Series | 8600 Series |
