Keysight DAQ973SB набір системи збору даних із комутацією

Overview

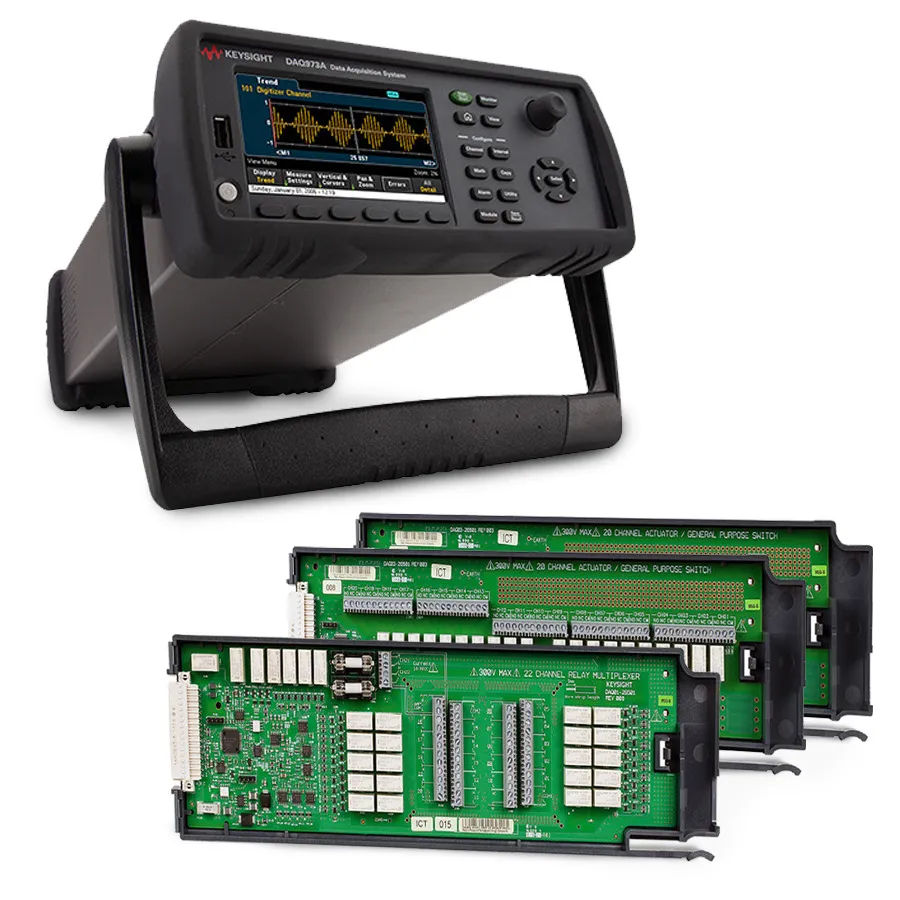

The Keysight DAQ973SB is a comprehensive data acquisition and switching bundle combining a DAQ973A mainframe with two 20-channel DAQM903A actuator/general purpose switch modules and one 20-channel DAQM901A multiplexer module. This configuration provides both switching and measurement capabilities, making it suitable for applications requiring control of external devices alongside traditional data acquisition tasks.

Key Features

• DAQ973A mainframe with 6-1/2 digit DMM and USB/LAN/GPIB interfaces
• Two DAQM903A modules with 40 total SPDT relay contacts (20 channels each)
• One DAQM901A multiplexer module with 20 measurement channels
• 300 V, 1 A relay contacts rated up to 50 W for powering external relays and solenoids
• SPDT (Form C) latching relays with 120 ch/s switching speed
• 80 channels per second multiplexing with selectable 2-wire or 4-wire operation
• Built-in thermocouple reference junction on multiplexer module
• 100,000 readings of non-volatile memory for data storage
• BenchVue DAQ software for system control and data logging
• Three-year warranty

Applications

• Test equipment automation and device control
• Power management and load switching
• Environmental chamber and thermal testing
• Production test systems with integrated control
• Process automation and monitoring

Included Accessories

• DAQ973A Data Acquisition Mainframe (USB/LAN/GPIB)
• Two DAQM903A 20-Channel Actuator/GP Switch Modules
• One DAQM901A 20-Channel Multiplexer Module
