Keysight DAQ973MB набір системи збору даних

Overview

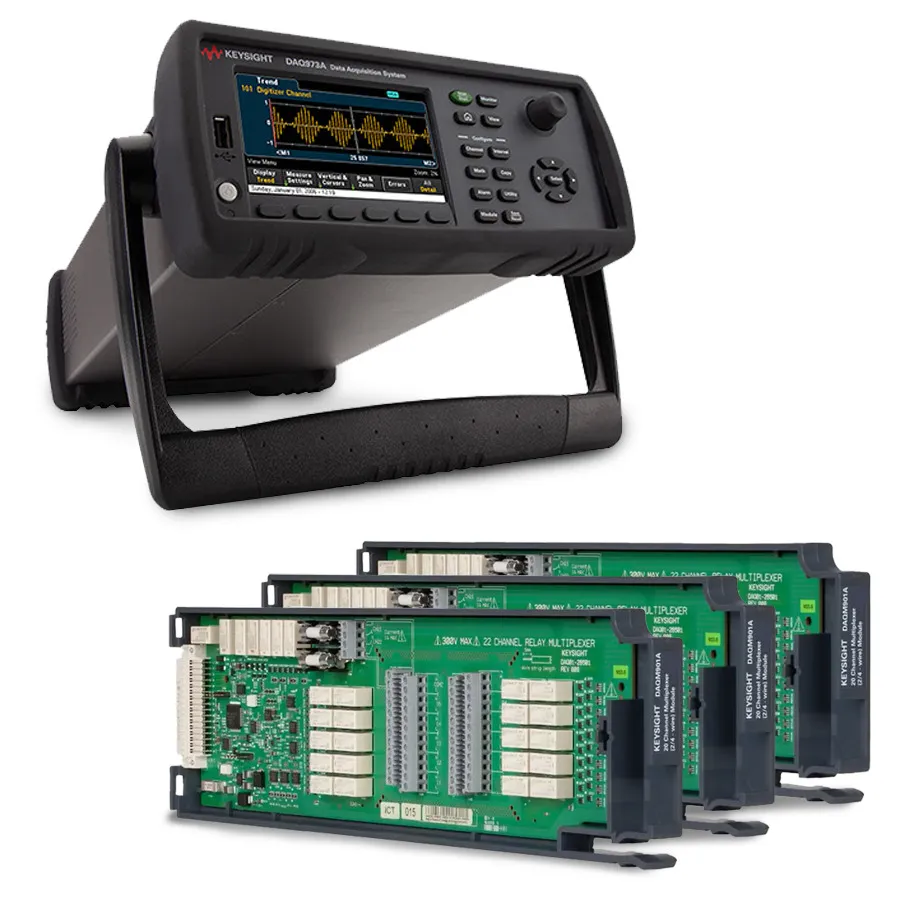

The Keysight DAQ973MB is a complete data acquisition bundle combining a DAQ973A mainframe with three 20-channel DAQM901A multiplexer modules. This configuration provides 60 channels of integrated measurement capability with high-speed scanning and built-in thermocouple reference junctions. It is ideal for applications requiring multi-channel temperature, voltage, current, and resistance measurements with USB, LAN/LXI, and GPIB connectivity.

Key Features

• DAQ973A mainframe with 6-1/2 digit DMM and USB/LAN/GPIB interfaces
• Three DAQM901A modules providing 60 total channels (20 channels per module)
• 80 channels per second scanning speed with selectable 2-wire or 4-wire operation
• 300 V switching with 1 A per channel for wide voltage compatibility
• Built-in thermocouple cold junction reference on each module
• Two additional fused current inputs per module for AC/DC measurements up to 1 A
• 100,000 readings of non-volatile memory for data storage
• BenchVue DAQ software for configuration and real-time logging
• Compatible with 34970A/34972A programming
• Three-year warranty

Applications

• Multi-channel temperature monitoring systems
• Process control and optimization
• Thermal profiling and device characterization
• Multi-point voltage and current data acquisition
• Industrial and environmental monitoring

Included Accessories

• DAQ973A Data Acquisition Mainframe (USB/LAN/GPIB)
• Three DAQM901A 20-Channel Multiplexer Modules
