Keysight 34134A DC/AC вимірювальний зонд струму

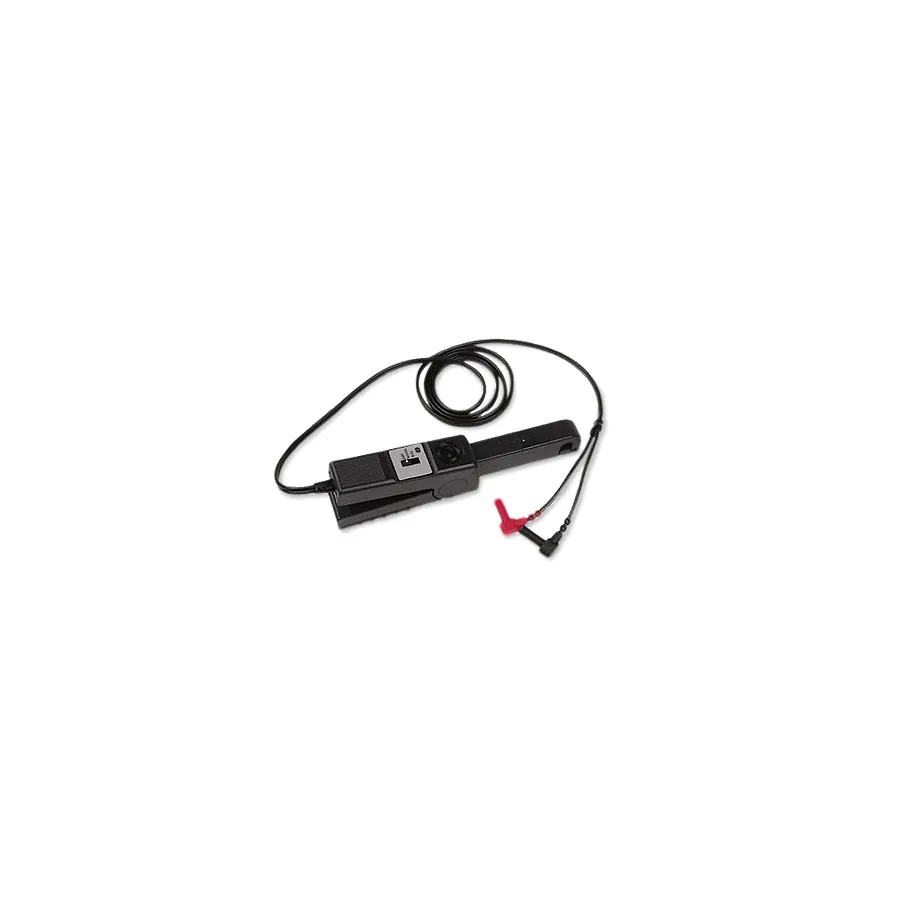

Keysight 34134A DC/AC DMM Current Probe
Запитати ціну
Keysight 34134A is a clamp-on AC/DC current probe for DMMs with 10 mA to 80 A DC and 10 mA to 60 A AC range, 8 kHz bandwidth, 2% accuracy, and CAT III 600 V rating.
Деталі продукту
| Модель | 34134A |
| Виробник | Keysight |
| Категорія | Струмові щупи |
| Наявність | На замовлення |
Опис
Overview
The Keysight 34134A is a clamp-on current probe designed for use with compatible digital multimeters to measure AC and DC currents. This probe is ideal for measuring ground currents, power supply ripple, and current distribution in systems without breaking circuit connections. The 1.5-meter cable allows convenient placement around conductors for non-invasive current measurement.
Key Features
- Clamp-on design for non-invasive current measurement
- DC current range: 10 mA to 80 A
- AC current range: 10 mA to 60 A
- Frequency range: DC to 8 kHz
- Accuracy: 2% reading + 5 mA (1 V/A range)
- Output signals: 1 V/A and 10 mA
- Cable length: 1.5 meters
- Termination: Right-angle shrouded banana plugs
- Safety rating: CAT III 600 V
- Minimum DMM input resistance requirement: 100 kΩ
Applications
- Measuring ground currents in circuits
- Power supply ripple measurement
- Current distribution analysis in systems
- Troubleshooting and diagnostic testing
Характеристики
| Clamp Type | Current Probe |
| Compatibility | Keysight 34460A, 34461A, 34401A, 34410A, 34411A, and L4411A DMM models. |
