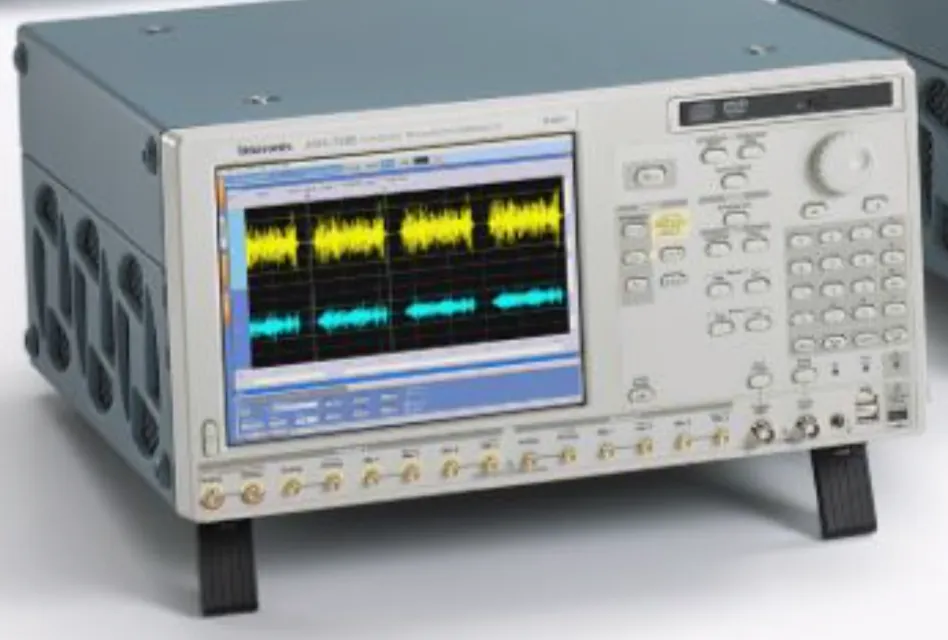

Tektronix AWG7082C генератор довільних форм сигналів

Overview

The AWG7082C is an industry-leading arbitrary waveform generator representing a cutting-edge benchmark in performance, sample rate, signal fidelity, and timing resolution. Part of the AWG7000 Series, this instrument delivers uncompromised performance with ultimate flexibility for complex signal generation. With up to 8 GS/s (16 GS/s interleaved) and 10-bit vertical resolution, it provides the best signal stimulus solution for ever-increasing measurement challenges.

Key Features

• Sample rates up to 8 GS/s (16 GS/s interleaved)
• 10-bit vertical resolution
• 32M point record length
• Modulation bandwidth up to 5.3 GHz (-3 dB)
• Generates wideband signals across 9.6 GHz frequency range
• 54 dBc SFDR at 1 GHz modulation bandwidth
• 2 output channels
• Waveform sequencing and sub-sequencing
• Dynamic jump capability for complex waveforms
• Deep memory for long complex sequences

Applications

• Wideband RF and microwave modulation testing
• Receiver stress testing with signal impairments
• Coherent optical signal research
• High-speed serial data validation
• Arbitrary waveform playback from oscilloscopes and spectrum analyzers
