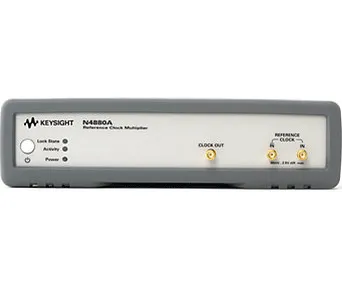

Keysight N4880A Reference Clock Multiplier
Keysight N4880A множувач еталонного тактового сигналу
Keysight N4880A Reference Clock Multiplier locks pattern generators to system reference clocks for accurate receiver testing of PCIe, MIPI M-PHY, and SD UHS-II devices.
Деталі продукту
| Модель | N4880A |
| Виробник | Keysight |
| Категорія | Bit Error Rate Testing |
| Наявність | На замовлення |
Опис
Огляд
N4880A — це множувач фазозімкненого контуру (PLL), що розширює можливості генераторів паттернів J-BERT та ParBERT компанії Keysight, дозволяючи їм блокуватися на еталонні тактові сигнали системи. Ця функціональність необхідна для точного тестування приймачів пристроїв у стандартах PCIe, MIPI M-PHY та SD UHS-II, де пристрій під тестуванням отримує свій тактовий сигнал вибірки з того ж еталонного сигналу. N4880A підтримує параметри смуги пропускання петлі 2 або 5 МГц та допускає значні варіації розподіленого спектрального тактування.
Основні характеристики
- Підтримує множення еталонного тактового сигналу 19.2 МГц, 26-52 МГц та 100 МГц
- Опції смуги пропускання петлі 2 або 5 МГц для різних вимог застосування
- Прозорість до 33 кГц розподіленого спектрального тактування на еталонному сигналі
- Чутливість входу 100 мВ (диференціально) для роботи з малими сигналами
- USB з'єднання з автономним графічним інтерфейсом користувача
- Дозволяє тестування толерантності джитеру, узгоджене з тактуванням пристрою під тестуванням
Застосування
- Тестування та валідація приймачів PCI Express 1.0, 2.0, 3.0
- Характеризація MIPI M-PHY gear 1-3
- Тестування хост-пристроїв SD карти UHS-II
- Синхронізація генератора напружених паттернів з еталонними тактовими сигналами системи
- Точне тестування толерантності джитеру в повторюваних умовах
Характеристики
| Accurate and Simplified Receiver Testing for PCI Express, MIPI M-PHY and SD UHS-II | The N4880A reference clock multiplier fills a critical requirement for R&D and test engineers who need to characterize and release the next generation of PCI Express main boards, MIPI M-PHY chipsets and SD card UHS-II host devices. With its support for multiple reference-clock rates, the N4880A will help you accurately characterize and verify standards compliance under easy-to-reproduce test conditions. |
| Lock the Stressed-Pattern Generator to a System Reference Clock | In common reference-clock architectures, where the host cannot be driven by an external reference clock it’s necessary to lock the stressed-pattern generator to the same system reference clock used by the receiver under test. This is because the receiver under test also derives its sampling clock from this reference clock. Locking the stressed pattern generator to the same reference clock as the receiver under test ensures accurate and reproducible jitter-tolerance test results. |
| Get the most Precise and Reproducible Receiver Tolerance Test Results for PCI Express Mainboards, MIPI M-PHY and SD UHS-II Hosts | The N4880A provides a multiplying phase-locked loop (PLL) which enables users to lock the pattern generator of J-BERT N4903B or ParBERT 81250A to a system reference clock. Spread Spectrum Clocking (SSC) and low frequency jitter are fed through the N4880A up to its PLL loop bandwidth of 2 or 5 MHz. The N4880A tolerates huge amounts of SSC for UHS-II reference clocks and offers excellent input sensitivity to handle very low voltage levels. |
| Features | Parameters |
| Power Consumption | 100–240 V, ~50/60 Hz, 80 VA max |
| Operating Temperature | 5 to 40°C (–23 to 104°F) |
| Storage Temperature | –40 to 70° C |
| Operating humidity | 95% relative humidity non-condensing |
| Storage Humidity | 50% relative humidity |
| Rack Mount without Bumper | 1/2 x 19” width, 1U height |
| Weight Net | 1.9 kg (4.2 lb) |
| Weight Shipping | ~4.5 kg (10 lb) |
| N4880A | Reference clock multiplier Included accessories: One 50 Ω termination, 3.5 mm; USB cable; CD-ROM with software and user documentation; Functional Test Report; ROHS addendum |
