Hioki BT3562A Тестер акумуляторів

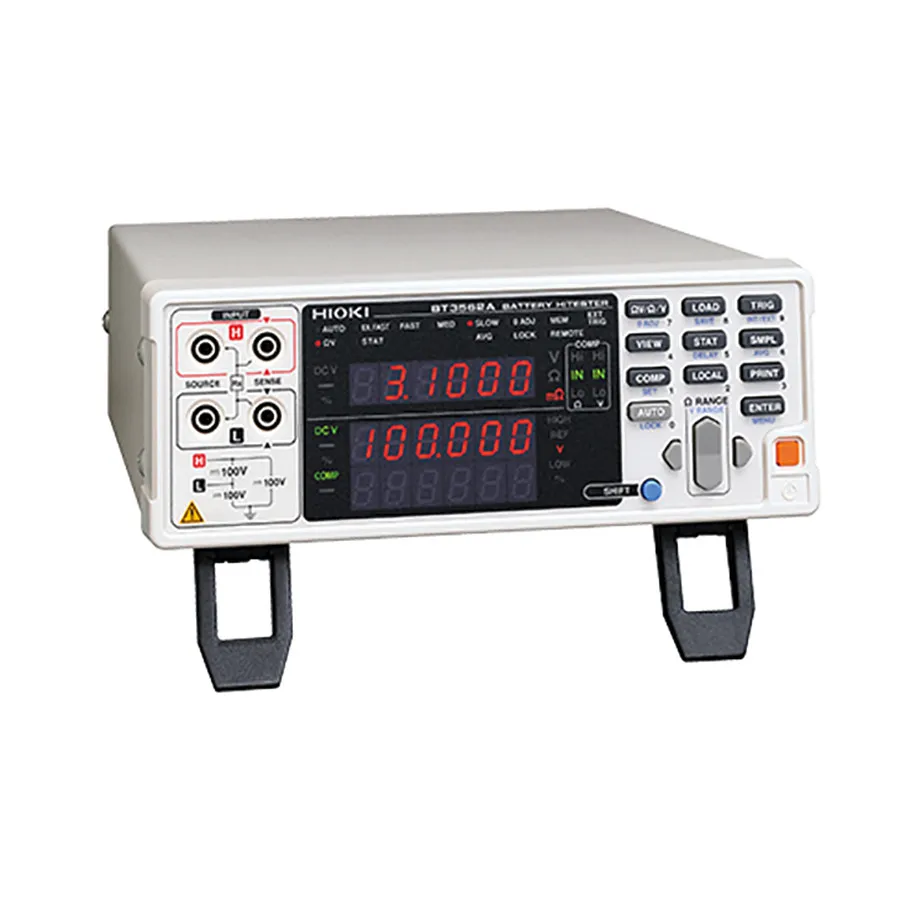

Hioki BT3562A Battery Tester
Запитати ціну
Hioki BT3562A automates production line testing of large EV battery cells and packs from 6V to 100V with AC four-terminal measurement method.
Деталі продукту
| Модель | BT3562A |
| Виробник | Hioki |
| Категорія | Тестери та аналізатори акумуляторів |
| Наявність | На замовлення |
Опис
Overview
The Hioki BT3562A Battery Tester is a production line solution for automated testing of battery cells and modules from 6V to 100V. Featuring AC four-terminal measurement method, it simultaneously measures internal resistance and open-circuit voltage with excellent repeatability. The instrument is designed for large-cell and mid-sized battery pack testing, particularly suited for electric vehicle battery production, and integrates seamlessly with LAN networks for factory automation.
Key Features
- Fully automated production line testing of large EV battery cells and modules
- Voltage measurement ranges: 6V, 60V, 100V
- Internal resistance ranges: 3 mΩ, 30 mΩ, 300 mΩ, 3 Ω, 30 Ω, 300 Ω, 3 kΩ
- AC four-terminal measurement method
- Simultaneous AC-IR and OCV measurement
- LAN interface for system integration
- Excellent noise resistance
- High line resistance tolerance for extended cable runs
- Enhanced electrostatic protection for battery transport
Applications
- Production line testing of large EV battery cells and modules
- High-voltage battery pack acceptance testing
- Electric vehicle battery module production line integration
- Mid-sized battery pack quality inspection
- Shipping and acceptance inspection of large battery cells
Характеристики
| Series | BT356xA Series |
