Siglent SHA860-VNA опція аналізу векторної мережі
Siglent SHA860-VNA Vector Network Analysis Option
Запитати ціну
Siglent SHA860-VNA vector network analysis option with S11/S21 measurements, 100 kHz to 7.5 GHz coverage, 114 dB dynamic range, and comprehensive display formats.
Деталі продукту
| Модель | SHA860-VNA |
| Виробник | Siglent |
| Категорія | Опції та аксесуари для аналізаторів |
| Наявність | На замовлення |
Опис
Overview
The Siglent SHA860-VNA is a vector network analysis option for SHA861A and SHA862A spectrum analyzers, enabling accurate measurement of RF component performance. This software upgrade provides high dynamic range and precision for evaluating cables, filters, antennas, and other RF components across a wide frequency range.
Key Features
- S11 and S21 Parameter Measurements for reflection and transmission characteristics with high dynamic range and accuracy
- Wide Frequency Range from 100 kHz to 3.6 GHz (or up to 7.5 GHz with SHA862A)
- High Dynamic Range up to 114 dB typical S21 dynamic range for demanding applications

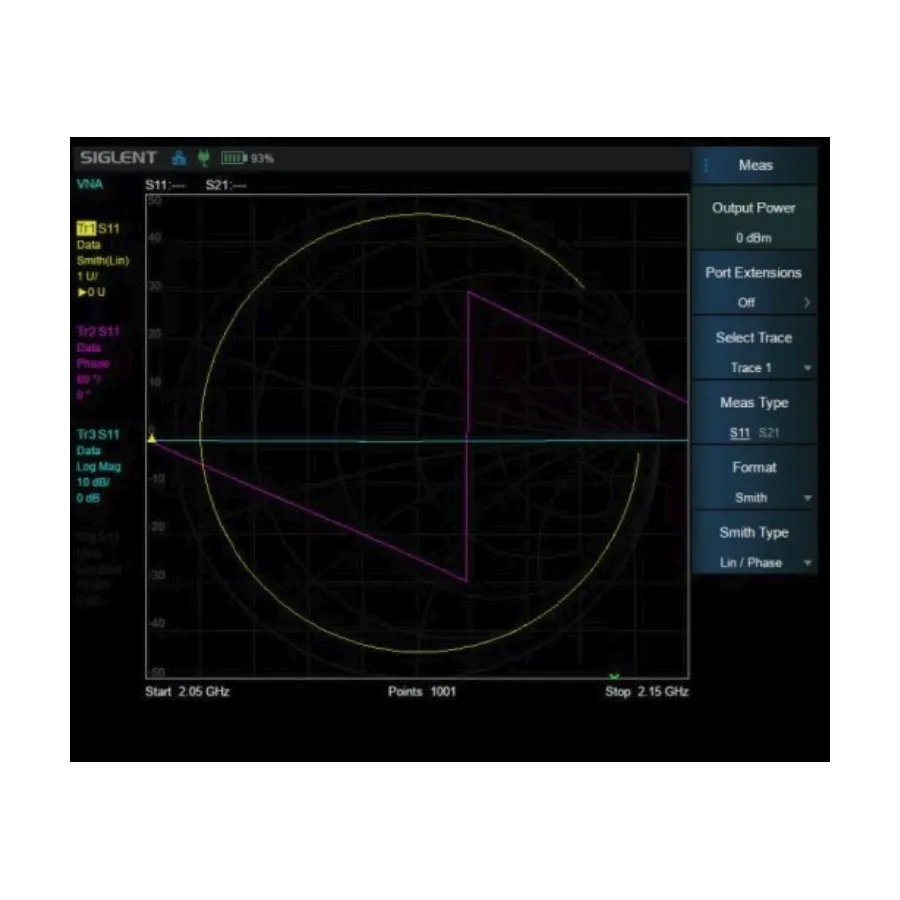

- Comprehensive Display Formats including Log/Linear Magnitude, Phase, Group Delay, SWR, Smith Chart, and Polar Charts
- User-Friendly Interface supporting up to 4 traces, multiple markers, math functions, and trace hold
- Calibration Options with Full 1-Port and Enhanced Response calibrations
Applications
- RF component testing and evaluation
- Antenna performance characterization
- Cable and transmission line analysis
- Filter design and verification
